1
Engine displacement
300
2
Year
1994
3
Trim
300 6X6 - W948730
4
Parts Catalog

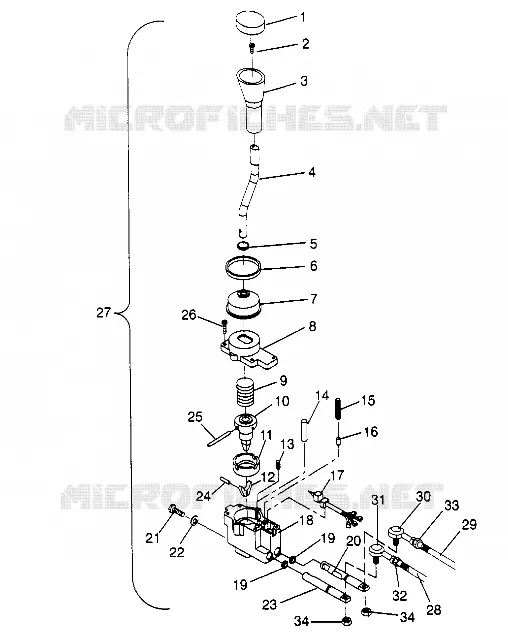

SHIFT LINKAGE ASSEMBLY 6X6 300 W948730 (4926792679C014)
5
Parts Diagram
Parts Catalog
TOOL KIT ASSEMBLY 6X6 300 W948730 (4926792679C013)
by
GEARCASE ASSEMBLY 6X6 300 W948730 (4926792679D001)
SHIFT LINKAGE ASSEMBLY 6X6 300 W948730 (4926792679C014)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
1
COVER SHIFT KNOB Substituted by 3233195 *
3233136
$83,99 Unit Price incl. VAT
2
SCREW
3233079
Not Available
3
DESC NOT_AVAILABLE
3133138
Not Available
4
ROD GEAR SELECTOR Substituted by 3233161
3233137
Not Available
5
STRAP WIRE
3233131
$18,89 Unit Price incl. VAT
6
CLAMP
3233132
Not Available
7
BOOT GEAR SELECTOR Substituted by 3233368
3233133
$125,99 Unit Price incl. VAT
8
COVER GEAR SELECTOR
3233081
$139,64 Unit Price incl. VAT
9
SPRING HOLDING
3233065
$17,21 Unit Price incl. VAT
10
STRIKER Substituted by 3233197
3233061
Not Available
11
CUP BEARING
3233063
$27,29 Unit Price incl. VAT
12
INTERLOCK BUTTERFLY
3233084
Not Available
13
SPRING CENTERING
3233083
Not Available
14
PIN STOP
3233062
Not Available
15
SPRING DETENT
3233069
Not Available
16
BULLET DETENT
3233060
$104,99 Unit Price incl. VAT
17
SWITCH GEAR SELECTOR Substituted by 3233209
3233087
$467,24 Unit Price incl. VAT
18
BODY GEAR SELECTOR
3233082
$165,36 Unit Price incl. VAT
19
O-RING 2-012
3233076
$11,54 Unit Price incl. VAT
20
SLIDE HIGH/REV.
3233088
Not Available
21
BOLT(10)
7512269
Not Available
22
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
23
SLIDE LOW
3233089
Not Available
24
PIN INTERLOCK
3233070
Not Available
25
PIN GROOVE
3233067
Not Available
26
SCREW Substituted by 3233498
3233085
Not Available
27
SELECTOR ASM GEAR (Incl. 1-20 23-26)
1341133
Not Available
28
ROD SHIFT-LINK HIGH
5020748
Not Available
29
ROD SHIFT-LINK LOW
5020749
Not Available
30
ROD END LH Substituted by 7061013
7060141
7061013
$120,74 Unit Price incl. VAT
31
ROD END RH Substituted by 7061014
7060142
$120,74 Unit Price incl. VAT
32
NUT-M6X1 HX R.HAND-Y
7546701
$7,34 Unit Price incl. VAT
33
NUT(10)
7546702
$2,09 Unit Price incl. VAT
34
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
