1
Engine displacement
300
2
Year
1994
3
Trim
300 6X6 - W948730
4
Parts Catalog
WISHBONES 6x6 300 W948730 (4926792679B007)
5
Parts Diagram
Parts Catalog
FRONT BRAKE 6X6 300 W948730 (4926792679B006)
by
STEERING

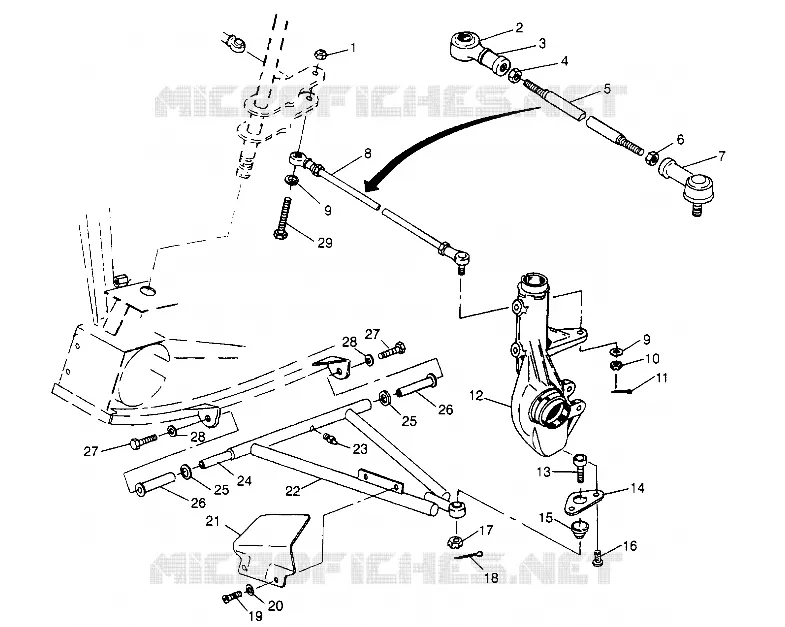

WISHBONES 6x6 300 W948730 (4926792679B007)
1
2
3
4
5
6
7
8
9
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
21
21
21
22
22
22
22
23
24
25
25
26
26
27
27
28
28
29
1
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
2
BOOT SEAL ROD END
5410540
$11,54 Unit Price incl. VAT
3
ROD END RH Substituted by 1822179
7060149
Not Available
4
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
5
TIE ROD
5020528
Not Available
6
NUT LH 10 MM.(10)
7546902
Not Available
7
ROD END
7060147
$115,49 Unit Price incl. VAT
8
TIE ROD ASM. Substituted by 1822310
1822081
Not Available
9
WASHER
7555806
$1,56 Unit Price incl. VAT
10
NUT CASTLE(10)
7546904
$9,44 Unit Price incl. VAT
11
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
BALL JOINT Substituted by 7080673 (Incl. 32-34)
7080364
7061306
$52,49 Unit Price incl. VAT
14
BRACKET-BALL JOINT
5211121
$62,99 Unit Price incl. VAT
15
BOOT RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
16
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$2,09 Unit Price incl. VAT
17
NUT-3/8-24 HX CA GR5-Y
7542438
$3,14 Unit Price incl. VAT
18
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
19
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
20
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
21
SHIELD RH CV JOINT Substituted by 5431149-070
5431149
$47,24 Unit Price incl. VAT
21
SHIELD LH CV JOINT Substituted by 5431150-070
5431150
Not Available
22
KIT A-FRAME LH
2200481
Not Available
22
KIT A-FRAME RH
2200482
$246,74 Unit Price incl. VAT
23
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
24
SHAFT A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
25
BUSHING A-ARM SPACER(10)
5020677
$19,94 Unit Price incl. VAT
26
BUSHING A-ARM LONG. Substituted by 5433066
5431596
5436973
$9,44 Unit Price incl. VAT
27
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
28
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
29
BOLT
7515512
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
