DRIVE TRAIN, FRONT GEARCASE INTERNALS FOR RANGER 500 4X4 CREW - R12WH50AG/AH/AK/AR FROM 2012

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, MAIN GEARCASE INTERNAL

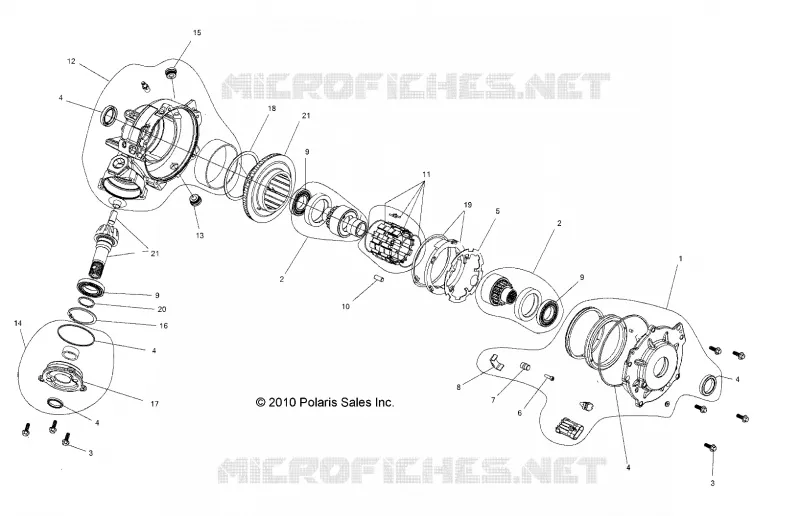

DRIVE TRAIN, FRONT GEARCASE INTERNALS

-

Asm. Front Gearcase [Built 3/29/11 and After]

1332971

$3 008,24 Unit Price incl. VAT

1

ASM. COVER OUTPUT [INCL. CONNECTOR ASSEMBLY OUTPUT COVER PLASTIC CLIP THRUST BUTTON ASM. 4WD COIL THRUST PLATE O-RING GROMMET SCREW OIL SEAL DOWEL PINS HEAT SHRINK TUBING]

3235162

$955,49 Unit Price incl. VAT

2

KIT OUTPUT HUB [INCL. HUB ASM. FEMALE HUB ASM. MALE]

3234936

$860,99 Unit Price incl. VAT

3

Kit Bolt [Incl. 8 Bolts]

3234405

$52,49 Unit Price incl. VAT

4

Kit Seal Repair [Used for the Plastic Cover]

3235330

$162,74 Unit Price incl. VAT

5

PLATE ARMATURE

3234407

$209,99 Unit Price incl. VAT

6

SET SCREW

3234408

$52,49 Unit Price incl. VAT

7

Asm. Button Thrust

3234594

Not Available

8

Plate Thrust

3235183

$115,49 Unit Price incl. VAT

9

BEARING

3234390

$60,89 Unit Price incl. VAT

10

KIT ROLLER [INCL. COMPLETE SET OF 20 ROLLERS]

3234393

$10,49 Unit Price incl. VAT

11

ASM. ROLL CAGE [INCL. CAGE SPRINGS CLIPS]

3235261

$666,74 Unit Price incl. VAT

12

Asm. Gearcase [Incl. 8 29 35 36]

3234411

Not Available

13

ASM. DRAIN PLUG MAGNETIC

3234412

$83,99 Unit Price incl. VAT

14

Cover Input

3234418

$241,49 Unit Price incl. VAT

15

PLUG OIL FILL

3234414

$62,99 Unit Price incl. VAT

16

Ring Retaining Internal [TO 5/15/2022]

3234416

$19,94 Unit Price incl. VAT

17

Cover Input

3234418

$241,49 Unit Price incl. VAT

18

SPACER-RING GEAR

3234437

$36,74 Unit Price incl. VAT

19

SPRING TORSION RETAINER

3234908

$173,24 Unit Price incl. VAT

20

RING RETAINING EXTERNAL

3235177

$11,54 Unit Price incl. VAT

21

ASM. RING AND PINION GEAR [INCL. RING GEAR SUB ASM. PINION GEAR DOWEL PIN]

3235188

$1 186,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
