1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 EFI X2 EPS
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
LONG BLOCK

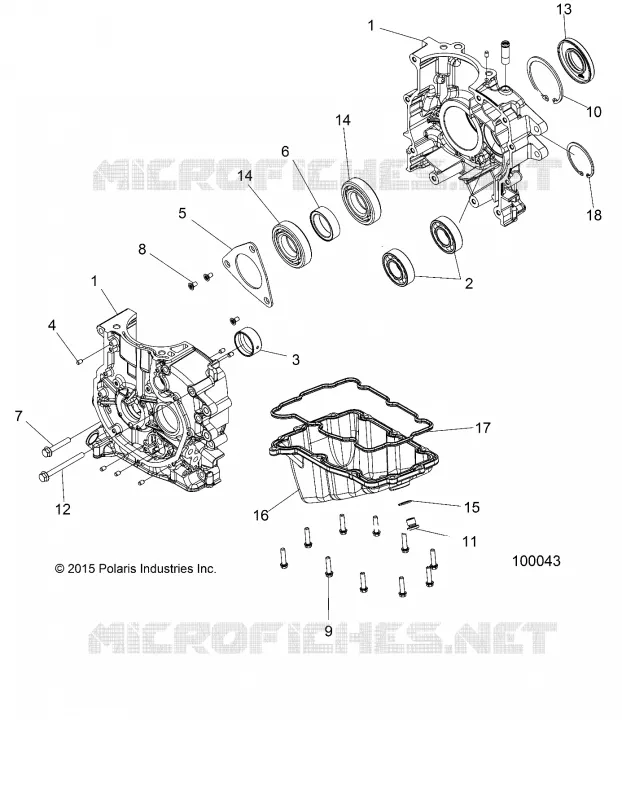

CRANKCASE
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
1
2
2
3
3
4
5
6
6
7
8
8
9
9
10
10
11
11
12
12
13
14
15
16
1
K-CRANKCASE 570 [INCL.7 CASES BREATHER PIPE]
2206361
$1 837,49 Unit Price incl. VAT
2
BEARING BALL [TO 01/15/2023]
3514426
$34,64 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
PIN-DOWEL M6X10
5137611
5132835
$4,19 Unit Price incl. VAT
5
PLATE-BEARING RETAINER
5256915
$47,24 Unit Price incl. VAT
6
SPACER BEARING
5137838
$73,49 Unit Price incl. VAT
7
SCREW M8x50
7520105
$9,44 Unit Price incl. VAT
8
SCREW-M6X12 TORX DR FH
7517598
$19,94 Unit Price incl. VAT
9
SCR-HXFLG M6X1.0X25 10.9
7519754
$7,34 Unit Price incl. VAT
10
RING-SNAP 80X2.5
7710660
$7,34 Unit Price incl. VAT
11
PLUG-SOCKET M12X1.5 DIN 908A
7052306
$31,49 Unit Price incl. VAT
12
SCREW-M8X1.25X90
7520104
$10,49 Unit Price incl. VAT
13
SEAL-CRANKSHAFT
3610171
$89,24 Unit Price incl. VAT
14
BEARING BALL
3514389
3515831
$55,43 Unit Price incl. VAT
15
WASHER-19X12X1.3 COPPER
5812232
$3,14 Unit Price incl. VAT
16
PAN OIL
5138327
5143696
$188,99 Unit Price incl. VAT
17
GASKET OIL PAN
5414626
$20,99 Unit Price incl. VAT
18
RING-RTNG DHO-62
7710681
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
