1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 EFI X2 EPS
4
Parts Catalog
TAILGATE
5

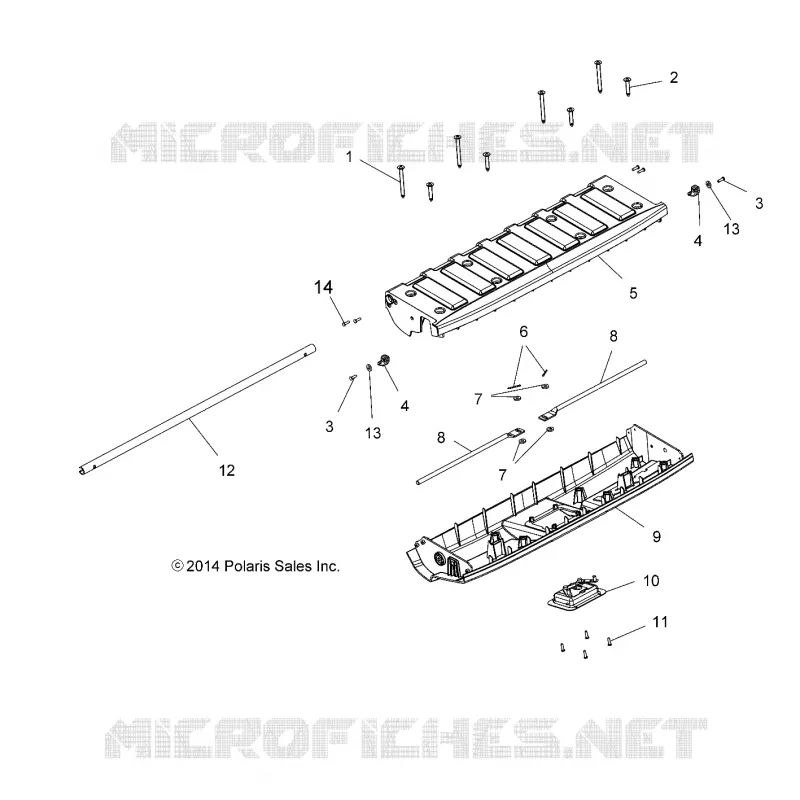

Parts Diagram
Parts Catalog
STORAGE, FRONT
by
DRIVE TRAIN, MAIN GEARCASE MOUNTING
TAILGATE
1
2
3
3
4
4
5
6
7
7
8
8
9
10
11
12
13
13
14
1
Screw
7518357
$10,49 Unit Price incl. VAT
2
Screw
7518356
$10,49 Unit Price incl. VAT
3
SCR-10X1.00 TX PN HI/LO-Y
7518922
$6,29 Unit Price incl. VAT
4
Bumper Tailgate
5413668
$6,29 Unit Price incl. VAT
5
Tailgate Inner Black
5437272070
$330,74 Unit Price incl. VAT
6
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
7
WASHER SHOULDER
7556492
$6,29 Unit Price incl. VAT
8
ROD LATCH TAILGATE
5136783
$52,49 Unit Price incl. VAT
9
Tailgate Outer Black
5437273070
$351,74 Unit Price incl. VAT
10
Latch Paddle Tailgate
7081420
$73,49 Unit Price incl. VAT
11
SCR-#8X3/4-HI/LO-PN-T20TRX-ZTB
7518227
$7,34 Unit Price incl. VAT
12
Tube Pivot Tailgate
5335828329
$99,74 Unit Price incl. VAT
13
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
14
SCR-#14X1 HI/LO-PH-PN TRX-M
7518158
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
