1
Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN TOURING QUAD 570 EPS
4
Parts Catalog
BRAKES, VALVE SYSTEM
5
Parts Diagram
Parts Catalog
BRAKES, BRAKE REAR CALIPER
by
DRIVE TRAIN, MAIN GEARCASE

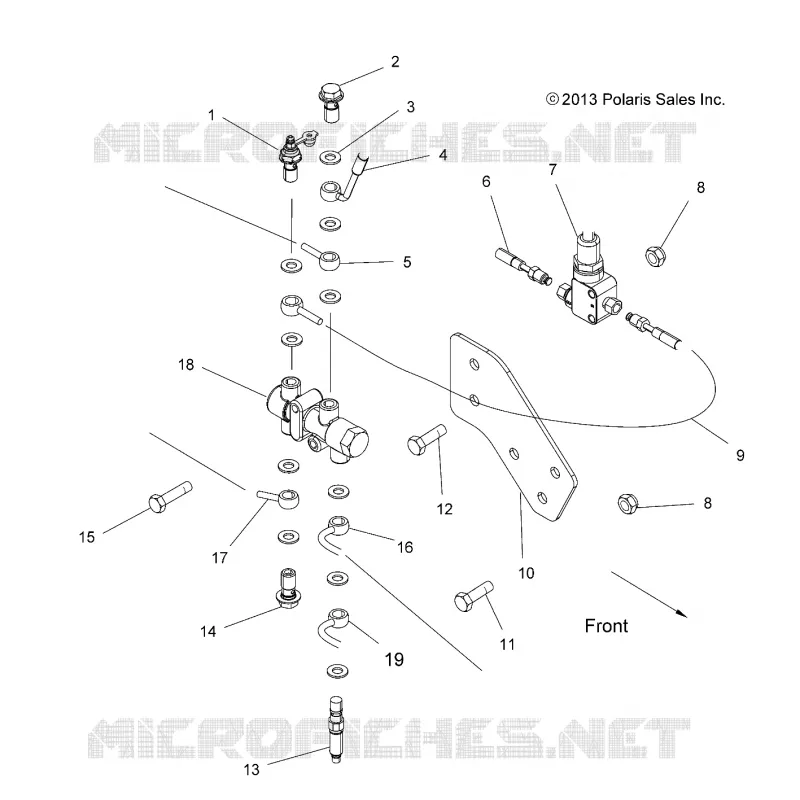

BRAKES, VALVE SYSTEM
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
1
Bolt Banjo w/Bleeder
1911112
$41,99 Unit Price incl. VAT
2
BOLT-DOUBLE BANJO M10X1.25
1911194
$41,99 Unit Price incl. VAT
3
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
4
LINE BRAKE
1912207
$157,49 Unit Price incl. VAT
5
LINE BRAKE REAR AUX.
1912197
Not Available
6
LINE BRAKE REAR SERVICE
1912198
Not Available
7
VALVE-REDUCING BRAKE
1911109
$278,24 Unit Price incl. VAT
8
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
9
LINE-BRAKE J/B TO P/VALVE NPT
1911200
$83,99 Unit Price incl. VAT
10
PLATE BRAKE VALVE BLACK
5258389329
Not Available
11
SCR-HH-1/4-20X1.5 GR5 ZY3
7512126
$9,44 Unit Price incl. VAT
12
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
13
SWITCH-BRK M10X1.25 DBL SEALED [TO 10/01/2022]
4014262
4081264
$153,29 Unit Price incl. VAT
14
BOLT-BANJO 10MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
15
SCR-HH-1/4-20X2.75 GR5 ZY3
7517451
$10,49 Unit Price incl. VAT
16
LINE-BRK FR 36.5 20SB 45B 210�
1912208
Not Available
17
LINE-BRAKE FTDB62 45B 45B 315�
1912196
Not Available
18
Block Distribution Brake Long Piston
1911185
1913923
$125,99 Unit Price incl. VAT
19
LINE-BRK FL 26 20B 45B 0�
1912320
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
