1
Engine displacement
570
2
Year
2016
3
Trim
SPORTSMAN TOURING QUAD 570 EPS
4
Parts Catalog
TURN SIGNALS HORN
5

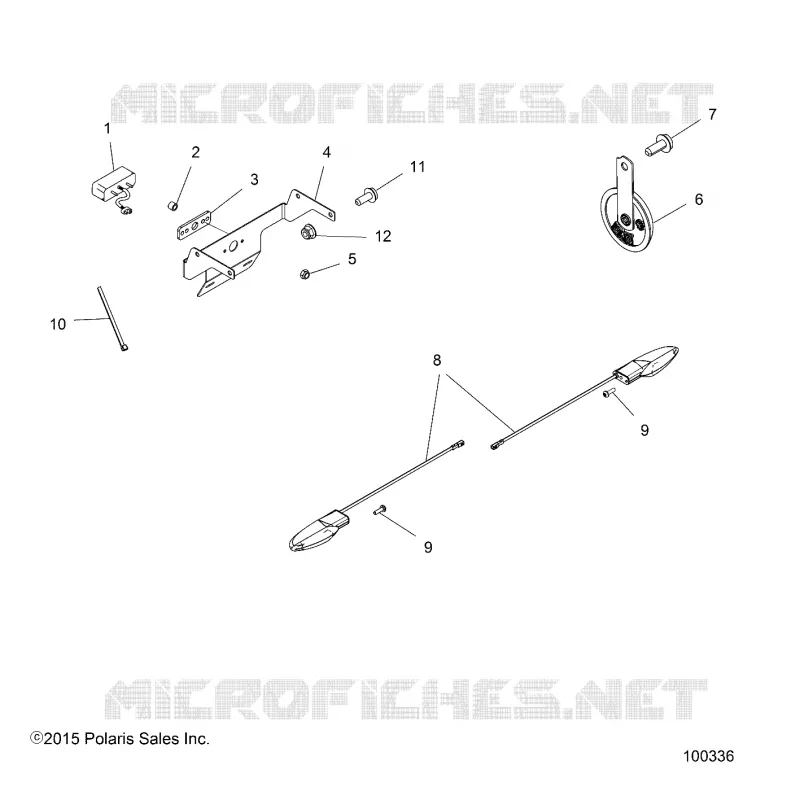

Parts Diagram
Parts Catalog
TAIL LAMPS
by
ENGINE, AIR INTAKE SYSTEM
TURN SIGNALS HORN
1
2
3
4
5
6
7
8
9
9
10
11
12
1
2
3
3
4
5
5
6
7
1
2
3
4
5
6
7
7
7
8
1
Light License Plate Black
2410629
$83,99 Unit Price incl. VAT
2
SPCR-LP LIGHT 5.0X8.0X4.0 AL
5134403
$6,29 Unit Price incl. VAT
3
SPACER-LICENSE PLATE LIGHT BD
5812520
$36,74 Unit Price incl. VAT
4
BRACKET REGISTRATION PLATE BLACK [SEB/SEC]
5250025458
Not Available
5
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
6
HORN DISC [TO 11/6/2023]
4011579
4082229
$87,14 Unit Price incl. VAT
7
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
8
Signal Taillight Flat Black
2411114463
$125,99 Unit Price incl. VAT
9
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
10
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
11
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
12
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
