1
Engine displacement
0
2
Year
1994
3
Trim
EURO WIDE TRAK GT - E942061
4
Parts Catalog

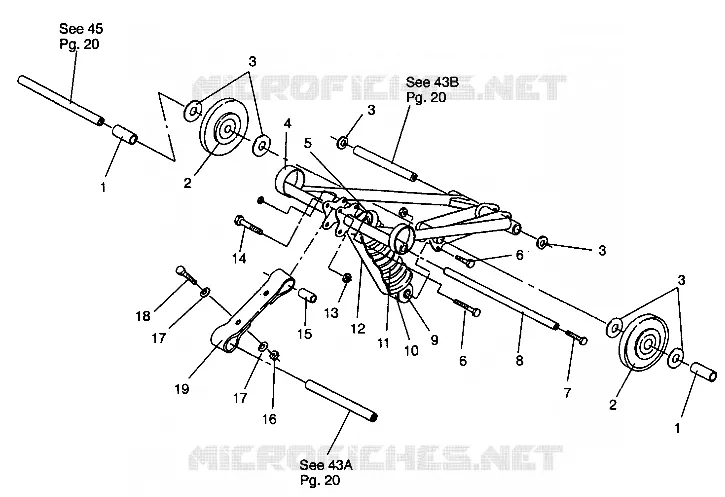

FRONT TORQUE ARM WIDETRAK LX 0942064 (49250425040021)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY WIDETRAK LX 0942064 (49250425040019)
by
REAR TORQUE ARM WIDETRAK LX 0942064 (49250425040022)
FRONT TORQUE ARM WIDETRAK LX 0942064 (49250425040021)
1
1
2
2
3
3
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
1
1
2
2
3
3
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
1
SPACER-.792 X1.010 X1.35
5333012
$20,99 Unit Price incl. VAT
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
4
ARM FR.TORQUE BLK. Substituted by 1541044-067
1540649067
Not Available
5
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
6
SCREW
7515415
$2,09 Unit Price incl. VAT
7
BOLT(10)
7515432
Not Available
8
SHAFT MOUNTING
5020554
Not Available
9
SHOCK CTR.SUSP.
7041281
Not Available
10
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
11
SPRING-SHOCK SUSP
7041140
Not Available
12
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
13
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
14
BOLT
7515438
$9,44 Unit Price incl. VAT
15
BUSHING SUSPENSION
5010212
Not Available
16
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
17
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
18
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
19
STRAP LIMITER
5410397
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
