1
Engine displacement
0
2
Year
1994
3
Trim
EURO WIDE TRAK GT - E942061
4
Parts Catalog

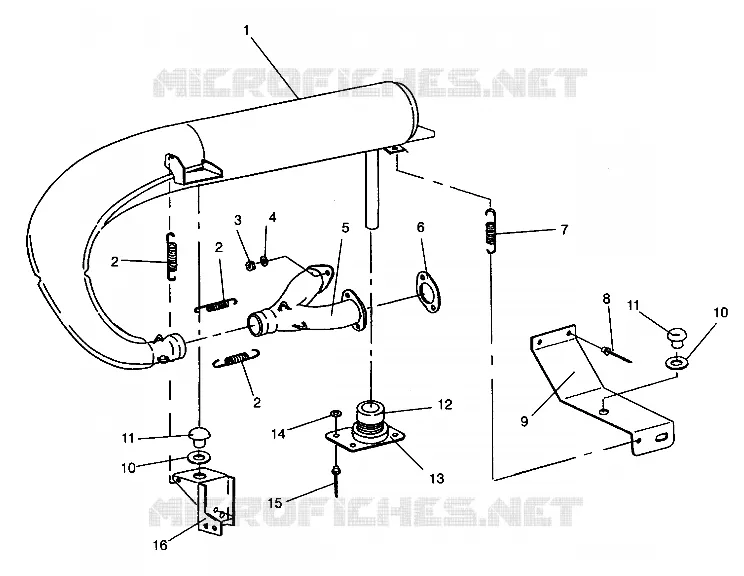

EXHAUST SYSTEM WIDETRAK LX 0942064 (49250425040026)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING WIDETRAK LX 0942064 (49250425040025)
by
OIL TANK AIR BOX WIDETRAK LX 0942064 (49250425040027)
EXHAUST SYSTEM WIDETRAK LX 0942064 (49250425040026)
1
2
2
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
1
2
2
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
1
MUFFLER Substituted by 1260783-029
1260609029
Not Available
2
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
3
NUT(10)
3080285
Not Available
4
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
5
MANIFOLD
1260505029
Not Available
6
GASKET EXHAUST
3083770
Not Available
7
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
8
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
9
BRKT R.MUFFLER
5222394067
Not Available
10
WASHER THRUST(10)
7555788
Not Available
11
DAMPNER VIB.
5410467
$16,79 Unit Price incl. VAT
12
BOOT EXHAUST
5410502
$47,24 Unit Price incl. VAT
13
HAT EXHAUST Substituted by 5432465
5431058
Not Available
14
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
15
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
16
SUPPORT MUFFLER BLK. Substituted by 5242798-067
1011831067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
