1
Engine displacement
0
2
Year
1994
3
Trim
EURO WIDE TRAK GT - E942061
4
Parts Catalog

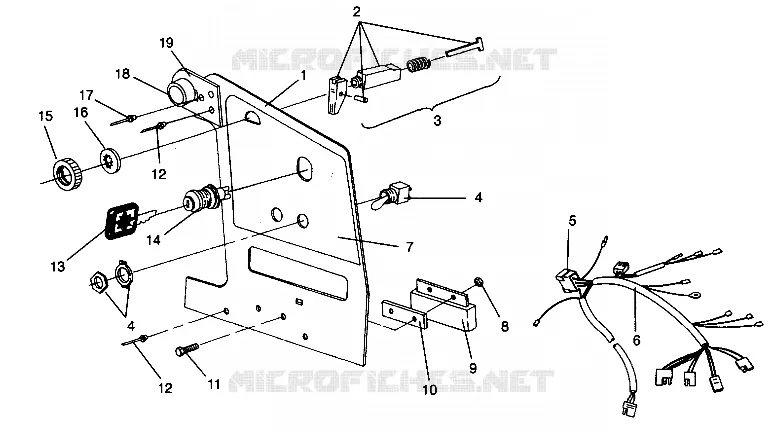

CONSOLE WIDETRAK LX 0942064 (49250425040009)
5
Parts Diagram
Parts Catalog
HOOD
by
RACK TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0942064 (49250425040010)
CONSOLE WIDETRAK LX 0942064 (49250425040009)
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
1
CONSOLE BLK(W#TRAK)
5222680067
Not Available
2
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
3
CABLE CHOKE
7080290
$194,24 Unit Price incl. VAT
4
SWITCH H-BAR HEATER (Incl. Nut & Face Plate)
4110066
Not Available
5
HOUSING W/RECEPTACLE
4020057
$5,66 Unit Price incl. VAT
6
HARNESS WIRE
2460333
Not Available
7
DECAL CONSOLE [No Longer Available]
7072973
Not Available
8
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
9
REGULATOR VOLTAGE
4060092
2203873
$188,99 Unit Price incl. VAT
10
HEAT SINK
5210650
Not Available
11
BOLT(10)
7512031
$3,98 Unit Price incl. VAT
12
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
13
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
14
KIT IGN. SWITCH (Incl. 6 7 9)
2200357
Not Available
15
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
16
Washer Inter Lock
7571610
$7,34 Unit Price incl. VAT
17
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
18
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
19
BRKT ROPE GUIDE BLK.
5222682067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
