1
Engine displacement
0
2
Year
2017
3
Trim
GEM (R24) - L17G2/4/6/EURO ALL OPTIONS
4
Parts Catalog
ELECTRICAL, FRONT
5

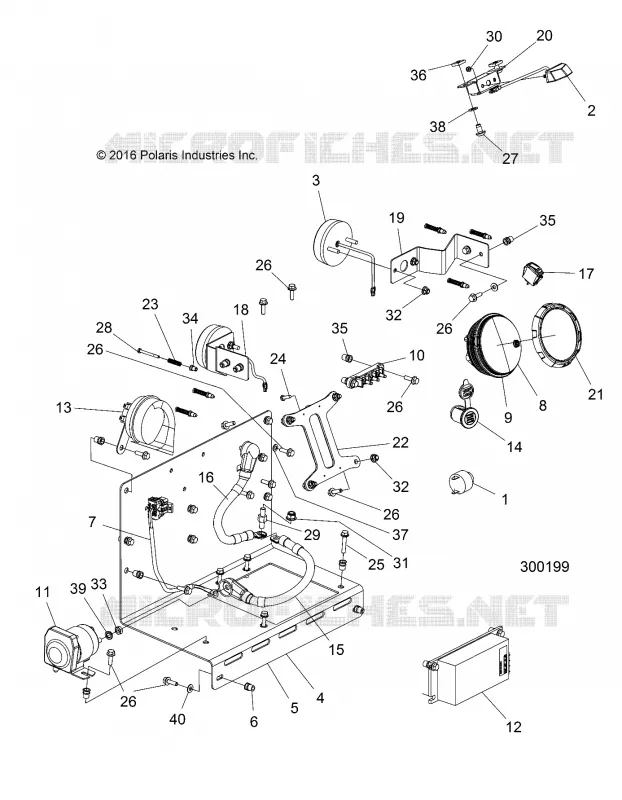

Parts Diagram
Parts Catalog
ELECTRICAL, BATTERY, LI-ION, 12KW
by
ELECTRICAL, OPTIONAL, SOLAR, 440W
ELECTRICAL, FRONT
9
10
11
12
12
12
13
14
15
15
16
16
16
17
18
19
20
21
22
23
24
25
26
26
26
26
26
26
27
28
29
30
31
32
32
33
34
35
35
36
37
38
39
40
1
ALARM-REVERSE WARNING 3
4016261
Not Available
2
LAMP (TO 6/21/2021)
2412682
$125,99 Unit Price incl. VAT
3
ASM-LIGHT TURN LED
2413673
Not Available
4
ASM-MOUNT ELECTRICAL INCL. 5 6
2413177
Not Available
5
BRKT-MOUNT ELECTRICAL
5261019
Not Available
6
NUT-RIVNUT M6X1.00
7547789
$6,29 Unit Price incl. VAT
7
ASM-HARNESS CONTACTOR BTRY
2413204
Not Available
8
ASM-SPEEDOMETER CPIA3 EV
3280696
Not Available
9
MOUNT-RUBBER INSTR. CLUSTER
5412138
$83,99 Unit Price incl. VAT
10
BLOCK TERMINAL 3 POST
4011892
$62,99 Unit Price incl. VAT
11
ASM-CONTACTOR 48V TROMBETTA
4012818
$451,49 Unit Price incl. VAT
12
CONVERTER-48VDC/12VDC 500W
4015999
4013453
$871,49 Unit Price incl. VAT
12
ASM-HARNESS DC/DC JUMPER [USE W/500W CONVERTER]
2413415
Not Available
12
CONVERTER-48VDC/12VDC 300W
4013453
$871,49 Unit Price incl. VAT
13
HORN ECE
4013817
Not Available
14
PORT-USB DUAL
4015350
Not Available
15
CABLE-CNTRL CONTACTOR FERRITE [EU]
4016687
Not Available
15
CABLE CONTROLLER CONTACTOR
4015490
Not Available
16
CABLE-CNTRL BMC FERRITE [EU]
4016688
$223,70 Unit Price incl. VAT
16
FILTER-LINE EMI [EU]
4016689
Not Available
16
CABLE CONTROLLER BMC
4015491
Not Available
17
SWITCH-LIGHT INTERIOR
4015779
Not Available
18
BRKT-LIGHT TURN LH
5261162
Not Available
19
BRKT-LIGHT TURN RH
5261163
Not Available
20
BRKT-LIGHT INTERIOR BLK
5263766626
Not Available
21
BEZEL-INSTRUMENT CLUSTER BLK
5438945
$29,39 Unit Price incl. VAT
22
MOUNT ECM BLACK
5450605070
$20,99 Unit Price incl. VAT
23
SPRING-CMPRSN .17#IDX1.00# SS [HEADLIGHT MOUNTING HARDWARE]
7043872
Not Available
24
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
25
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
26
SCR-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
$7,34 Unit Price incl. VAT
27
SCR-TXTH-M8X1.25X15 8.8ZB3 P80
7520391
Not Available
28
SCR-PHPHD-M4X0.7X42 4.8 ZB [HEADLIGHT MOUNTING HARDWARE]
7519256
$6,29 Unit Price incl. VAT
29
STUD-M8X1.25X14X14
7519183
$41,99 Unit Price incl. VAT
30
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
31
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
32
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
33
NUT-HEX JAM 5/16-24 GR2 STL ZC
7547469
$5,24 Unit Price incl. VAT
34
NUT-RIVNUT M4X0.7 [HEADLIGHT MOUNTING HARDWARE]
7547749
Not Available
35
NUT-RIVNUT M6X1.00
7547789
$6,29 Unit Price incl. VAT
36
NUT-SQR M8X1.25 ZPC �
7547792
$7,34 Unit Price incl. VAT
37
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
38
WASHER-8.4X16.0X1.6 SPC
7556305
$2,09 Unit Price incl. VAT
39
WSHR-8.5X14.8X1.9 ZPC
7556528
$7,34 Unit Price incl. VAT
40
WASHER-.250X.563X.047 WRGHT-Y
7558203
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
