1
Engine displacement
0
2
Year
2017
3
Trim
GEM (R24) - L17G2/4/6/EURO ALL OPTIONS
4
Parts Catalog
DOORS, QUARTER
5

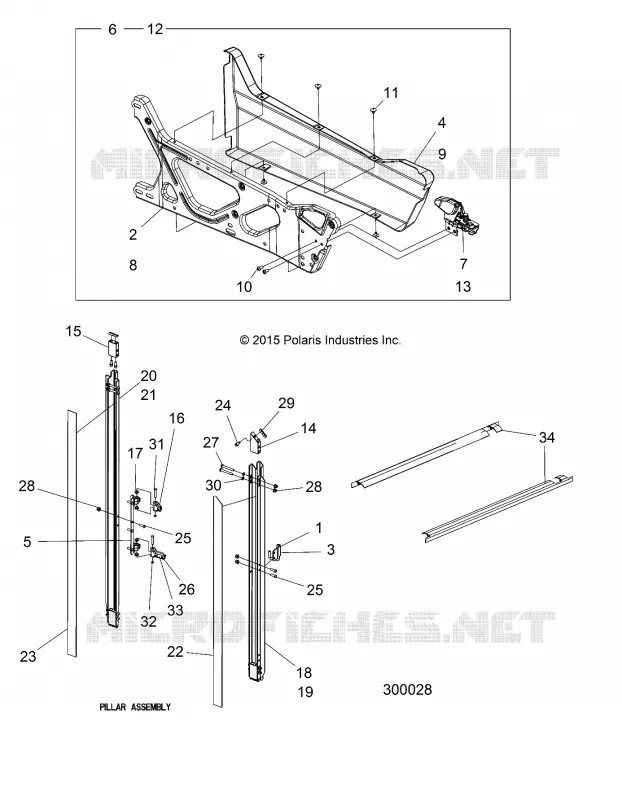

Parts Diagram
Parts Catalog
BODY, DASH, LOWER, LH
by
DOORS, REAR
DOORS, QUARTER
17
18
19
20
21
22
23
24
25
25
26
27
28
28
29
30
31
32
33
34
34
1
WELD-CATCH DOOR LH BLK [E2][E6][ELXD]
1021762458
Not Available
1
WELD-CATCH DOOR QUARTER LH BLK [E4][E6]
1022234458
Not Available
2
WELD-CATCH DOOR QUARTER RH BLK [E4][E6]
1022235458
Not Available
2
FRAME-DOOR QUARTER RH BLK
5261463458
Not Available
3
WELD-CATCH DOOR RH BLK [E2][E6][ELXD]
1021763458
Not Available
4
SKIN-DOOR QUARTER RH BLUE
5452540598
Not Available
4
SKIN-DOOR QUARTER RH BLACK
5452540666
Not Available
4
SKIN-DOOR QUARTER RH WHITE
5452540599
Not Available
4
SKIN-DOOR QUARTER RH RED
5452540520
Not Available
5
WELD-HINGE BLK [E2][E6][ELXD]
1021764458
Not Available
6
ASM-DOOR QUARTER LH BLUE
2635863598
Not Available
6
ASM-DOOR QUARTER LH BLACK
2635863666
Not Available
6
ASM-DOOR QUARTER LH RED
2635863520
Not Available
6
ASM-DOOR QUARTER LH WHITE
2635863599
Not Available
7
ASM. LATCH DOOR LH
2636270
2637286
$141,74 Unit Price incl. VAT
8
FRAME-DOOR QUARTER LH BLK
5261462458
Not Available
9
SKIN-DOOR QUARTER LH RED
5452539520
Not Available
9
SKIN-DOOR QUARTER LH BLUE
5452539598
Not Available
9
SKIN-DOOR QUARTER LH WHITE
5452539599
Not Available
9
SKIN-DOOR QUARTER LH BLACK
5452539666
Not Available
10
SCREW-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
11
RIVET-POP ALUM 3/16GRP 3.75-50 [TO 2/22/16]
7662109
Not Available
12
ASM-DOOR QUARTER RH BLACK
2635864666
Not Available
12
ASM-DOOR QUARTER RH WHITE
2635864599
Not Available
12
ASM-DOOR QUARTER RH BLUE
2635864598
Not Available
12
ASM-DOOR QUARTER RH RED
2635864520
Not Available
13
ASM. LATCH DOOR RH
2636271
2637287
$141,74 Unit Price incl. VAT
14
BLOCK-DOOR CURVED BLACK
5140525626
Not Available
15
BLOCK-DOOR STRAIGHT BLACK [E2]
5140526626
Not Available
16
BRACKET DOOR HINGE UPPER
5259048
$20,99 Unit Price incl. VAT
17
BUSHING DOOR PIVOT
5450592
$5,24 Unit Price incl. VAT
18
EXTRUSION-PILLAR FRONT LH BLK
5510885626
Not Available
19
EXTRUSION-PILLAR FRONT RH BLK
5510886626
Not Available
20
EXTRUSION-PILLAR REAR LH BLK
5510889626
Not Available
21
EXTRUSION-PILLAR REAR RH BLK
5510890626
Not Available
22
EXTRUSION-COVER PILLAR 1167MM
55221321167
Not Available
23
EXTRUSION-COVER PILLAR 1350MM
55221321350
Not Available
24
SCR-HXFL-M5X0.8X12 4.8 ZPC NYL
7518984
$14,69 Unit Price incl. VAT
25
SCR-TXBH-M8X1.25X25 8.8 ZB
7519728
$9,44 Unit Price incl. VAT
26
SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
7519997
$7,34 Unit Price incl. VAT
27
SCR-TXTH-M8X1.25X65 8.8 ZB3 P3
7520390
Not Available
28
NUT-M8X1.25 FLG NYLOC-OLIVE D
7547454
7548028
$5,24 Unit Price incl. VAT
29
NUT-M8X1.25 ROLL-IN LEAF
7547806
Not Available
30
WASHER-8.4X16.0X1.6 SPC
7556305
$2,09 Unit Price incl. VAT
31
PIN DOOR HINGE [TO 7/1/2020]
7662138
$8,39 Unit Price incl. VAT
32
E-CLIP M6 DIN 6799
7710466
$6,29 Unit Price incl. VAT
33
BRACKET DOOR HINGE
5258008
5270635
$52,49 Unit Price incl. VAT
34
EXTRUSION-COVER EDGE DOOR LH
5522185
Not Available
34
EXTRUSION-COVER EDGE DOOR RH
5522186
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
