SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5

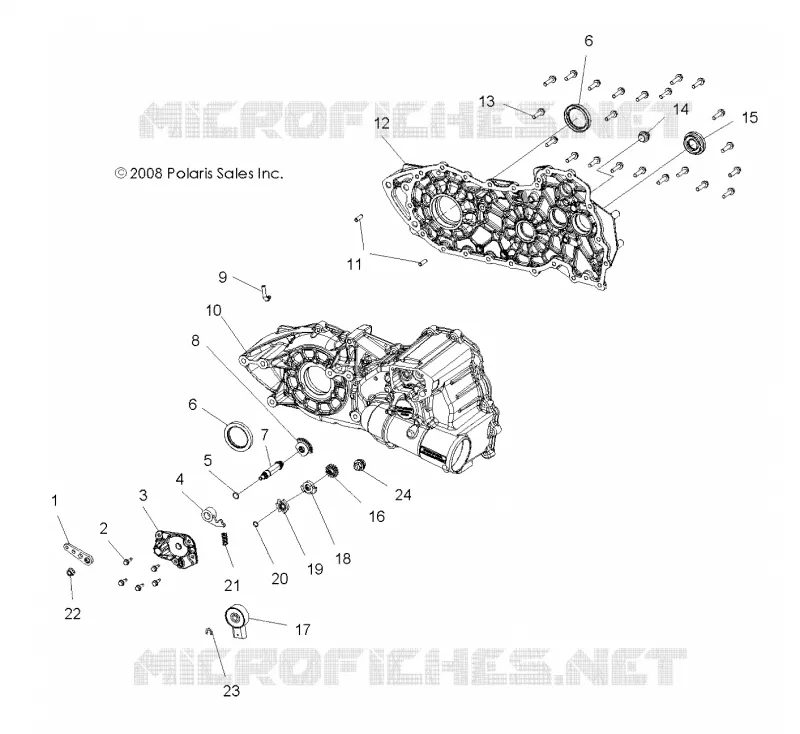

Parts Diagram
Parts Catalog
DRIVE TRAIN, GEARCASE FRONT OUTPUT SHAFT
by
DRIVE TRAIN, SECONDARY CLUTCH
DRIVE TRAIN, MAIN GEARCASE
-
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
6
7
8
9
9
10
11
12
-
Asm. Gearcase [Incl. All]
1332626
Not Available
1
BELLCRANK .510 HOLE 92 ~
3234584
$52,49 Unit Price incl. VAT
2
SCREW
3233826
$17,84 Unit Price incl. VAT
3
COVER SECTOR GEARS MACHINED
3234188
$209,99 Unit Price incl. VAT
4
PAWL DETENT
3233829
$68,24 Unit Price incl. VAT
5
O-RING -014
3233869
$10,49 Unit Price incl. VAT
6
SEAL TRIPLE LIP 40 X 70 X 7
3233878
$57,74 Unit Price incl. VAT
7
SHAFT SHIFT
3233831
$115,49 Unit Price incl. VAT
8
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
9
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
10
Gearcase RH
3234242
$782,24 Unit Price incl. VAT
11
PIN DOWEL
3233247
$13,64 Unit Price incl. VAT
12
Gearcase LH
3234056
Not Available
13
SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25
3234114
$13,64 Unit Price incl. VAT
14
PLUG 3/4-16 41775 INTERNAL HEX
3233794
$31,49 Unit Price incl. VAT
15
Seal
3233874
$57,74 Unit Price incl. VAT
16
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
17
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
18
Disc Lockout
3234081
3235243
$17,84 Unit Price incl. VAT
19
STAR DETENT
3233909
$52,49 Unit Price incl. VAT
20
O-RING 2-012
3233076
$11,54 Unit Price incl. VAT
21
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
22
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
23
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
24
MAGNETIC PLUG 3/4-16 INTERNAL HEX
3234529
3233794
$31,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
