Engine displacement
500
2
Year
1998
3
Trim
SPORTSMAN 500 - W98CH50A
4
Parts Catalog

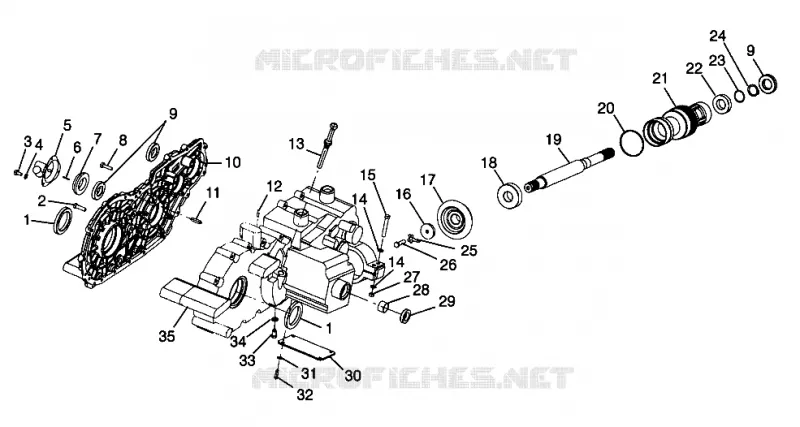

GEARCASE (CASES AND SNORKEL)
5
Parts Diagram
Parts Catalog
GEARCASE (INTERNAL COMPONENTS)
by
CRANKCASE
GEARCASE (CASES AND SNORKEL)
-
1
1
2
3
4
5
6
7
8
8
8
8
9
9
10
11
12
13
-
-
15
16
17
-
19
20
21
22
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
-
1
1
2
3
4
5
6
7
8
8
8
8
9
9
10
11
12
13
-
-
15
16
17
-
19
20
21
22
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
24
25
26
27
28
29
30
31
32
33
34
35
-
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
1
SEAL
3233256
3233878
$57,74 Unit Price incl. VAT
2
SCREW
3233252
$9,44 Unit Price incl. VAT
3
BOLT(10)
7515378
Not Available
4
WASHER(10)
7555725
Not Available
5
ADAPTER DRIVE(1:1.2)
3280219
Not Available
6
KEY SPEEDO.DRIVE
3280217
Not Available
7
SEAL ANGLE DRIVE
3280164
Not Available
8
SCREW
3233026
$12,59 Unit Price incl. VAT
8
Nut FLEXLOC
3233289
7542103
$10,49 Unit Price incl. VAT
9
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
10
GEARCASE LH
3233473
Not Available
11
PIN DOWEL
3233247
$13,64 Unit Price incl. VAT
12
VENT
3233037
Not Available
13
DIPSTICK
3233475
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
BOLT
3233442
$3,98 Unit Price incl. VAT
16
WASHER
3233352
$3,14 Unit Price incl. VAT
17
GEAR 31T SNORKEL
3233476
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SHAFT SNORKEL
3233446
Not Available
20
O-RING
3233302
Not Available
21
SNORKEL
3233303
Not Available
22
Bearing Ball
3233305
$54,59 Unit Price incl. VAT
23
SPACER (1.180 x .995 x .040)
3233355
Not Available
23
SPACER (1.180 x .995 x .005)
3233356
Not Available
23
SPACER
3233357
$36,74 Unit Price incl. VAT
23
SPACER (1.180 x .995 x .010)
3233353
$4,08 Unit Price incl. VAT
23
SPACER (1.180 x .995 x .025)
3233354
$4,08 Unit Price incl. VAT
24
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
25
BOLT LOCK SNORKEL GEAR
3233444
$4,19 Unit Price incl. VAT
26
BOLT
3233351
$3,66 Unit Price incl. VAT
27
NUT FLEXLOCK
3233291
$5,24 Unit Price incl. VAT
28
BUSHING
3233292
$57,74 Unit Price incl. VAT
29
SEAL
3233293
Not Available
30
PLATE COVER
3233294
$18,57 Unit Price incl. VAT
31
WASHER LOCK
3233295
$3,66 Unit Price incl. VAT
32
SCREW
3233296
Not Available
33
PLUG DRAIN Substituted by 3233777
3233253
$52,49 Unit Price incl. VAT
34
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
35
GEARCASE RH
3233487
Not Available
