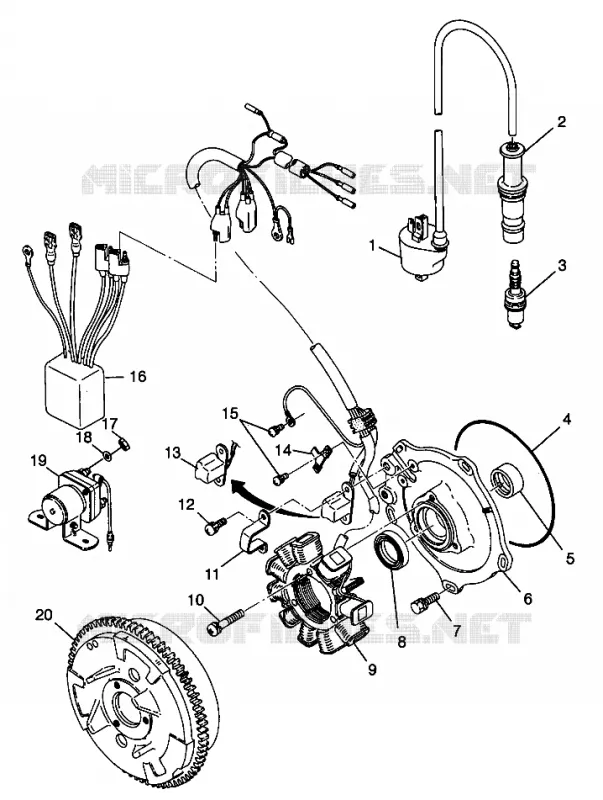

MAGNETO SPORTSMAN 500 W98CH50A AND W98CH50AB (4945714571E001)
5
Parts Diagram
Parts Catalog
by
STARTING MOTOR SPORTSMAN 500 W98CH50A AND W98CH50AB (4945714571E002)
MAGNETO SPORTSMAN 500 W98CH50A AND W98CH50AB (4945714571E001)
1
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
2
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Coil Ignition
3085228
Not Available
1
Asm. Coil Ignition
3085227
Not Available
2
CAP SPARKPLUG *
3084980
$115,49 Unit Price incl. VAT
3
SPARKPLUG BKR5E(4)
3070175
$7,34 Unit Price incl. VAT
4
O-RING
3084978
$68,24 Unit Price incl. VAT
5
BEARING METAL
3084972
Not Available
6
PLATE (Up to S#99-02080)
3085560
Not Available
6
PLATE ASM. Substituted by 3086820 (Incl. 5 6 8-15)
3085559
Not Available
7
BOLT&WASHER ASM.
3081657
$9,44 Unit Price incl. VAT
8
SEAL OIL
3084973
$52,49 Unit Price incl. VAT
9
STATOR Substituted by 3086821 (Incl. 13)
3085561
Not Available
10
SCREW&WASHER ASM. (Up to S#99-02080)
3085563
Not Available
11
BAND PULSE
3085554
Not Available
12
SCREW&WASHER ASM.
3084976
Not Available
13
COIL PULSER
3085360
Not Available
14
CLAMP
3084977
Not Available
15
SCREW&WASHER ASM(10)
3081256
$6,29 Unit Price incl. VAT
16
CDI SYSTEM * (Up to S#99-02080)
3085639
Not Available
17
NUT
3083073
$4,19 Unit Price incl. VAT
18
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
19
SWITCH MAGNETIC *
3085521
4011335
$115,49 Unit Price incl. VAT
20
FLYWHEEL W/RING GEAR Substituted by 3086819
3085558
Not Available
