1
Engine displacement
0
2
Year
1992
3
Trim
TRAIL BOSS 4X4 - W928127
4
Parts Catalog
OIL PUMP ASSEMBLY 250 4X4 / W928127 (4922872287D001)
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON 250 4X4 / W928127 (4922872287C014)
by
CARBURETOR 250 4X4 / W928127 (4922872287D002)

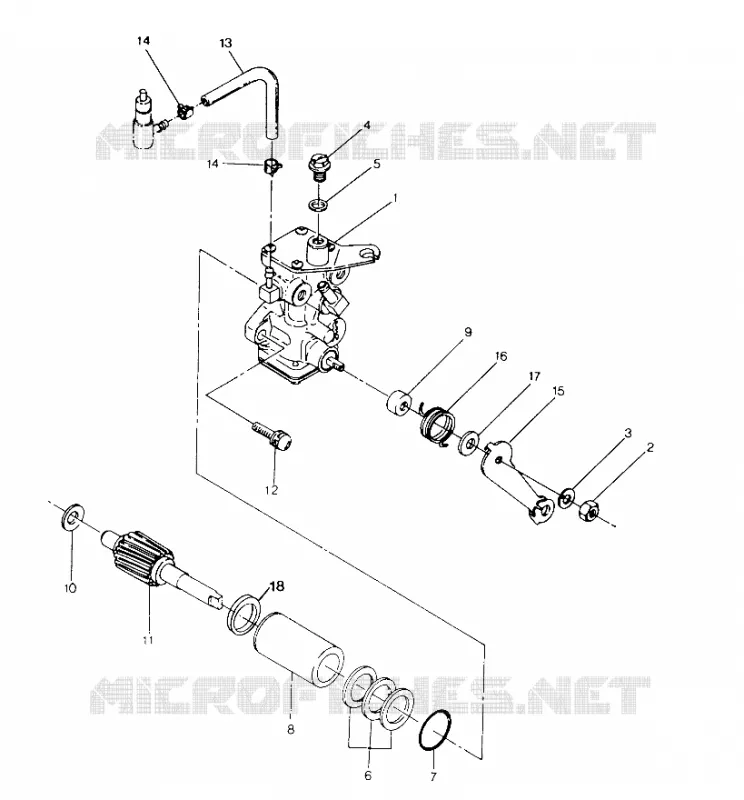

OIL PUMP ASSEMBLY 250 4X4 / W928127 (4922872287D001)
1
OIL PUMP ASM. Substituted by 3085542 (F1B) (Incl. 4 5 7 13-18)
3083806
Not Available
2
NUT
3083120
$6,29 Unit Price incl. VAT
3
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
4
SCREW-AIR VENT
3083125
Not Available
5
PACKING(10)
3083126
$7,34 Unit Price incl. VAT
6
SPACER 3 .6MM
3083673
5141621
$8,39 Unit Price incl. VAT
6
SPACER 2 .3MM
3083672
5141620
$6,29 Unit Price incl. VAT
6
SPACER 1 .15MM
3083671
5141619
$6,29 Unit Price incl. VAT
7
O RING
3083127
Not Available
8
BUSHING(OIL PUMP)
3083353
$54,59 Unit Price incl. VAT
9
CAP
3083758
$9,23 Unit Price incl. VAT
10
SPACER *
3083428
$3,14 Unit Price incl. VAT
11
GEAR SMALL
3083429
Not Available
12
SCREW & WASHER Substituted by 3083783
3084198
$4,19 Unit Price incl. VAT
13
PIPE RUBBER Substituted by 3083446
3083139
Not Available
14
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
15
LEVER CONTROL
3083935
Not Available
16
SPRING-RETURN
3083123
Not Available
17
COLLAR CAMSHAFT
3083757
$7,86 Unit Price incl. VAT
18
O RING
3083129
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
