1
Engine displacement
0
2
Year
1992
3
Trim
TRAIL BOSS 4X4 - W928127
4
Parts Catalog

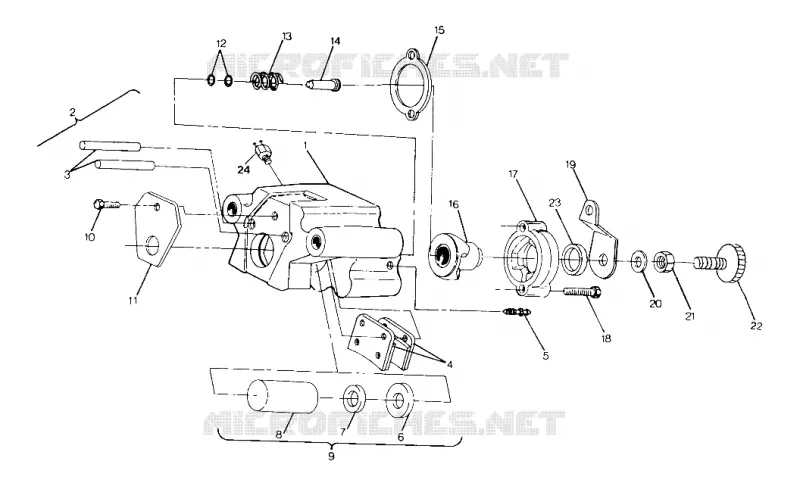

REAR BRAKE 250 4X4 / W928127 (4922872287C005)
5
Parts Diagram
Parts Catalog
RIGHT GEARCASE BRAKE MOUNTING 250 4X4 / W928127 (4922872287C004)
by
FRONT BRAKE 250 4X4 / W928127 (4922872287C006)
REAR BRAKE 250 4X4 / W928127 (4922872287C005)
-
16
17
18
19
20
21
22
23
24
-
CALIPER R.BRAKE (Complete) (#J# Model Only)
1910073
Not Available
1
CALIPER REAR BRAKE
5130714
Not Available
2
KIT PAD R.BRAKE Substituted by 2200464 (Incl. 3 4)
1930644
2200464
$56,16 Unit Price incl. VAT
3
PIN DOWEL(10)
7661820
$20,99 Unit Price incl. VAT
4
PAD ASM. Substituted by 2200464
1910032
2200464
$56,16 Unit Price incl. VAT
5
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
KIT BRAKE SEALS&PISTON (Incl. 6-8 12 14 15)
1930666
Not Available
10
SCREW SEMS(10)
7512020
$4,19 Unit Price incl. VAT
11
PLATE PIN
5211143
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SPRING BRAKE COMP.
7041219
Not Available
14
PIN BRAKE ADJUSTER
5020523
Not Available
15
GASKET BRAKE
5830009
Not Available
16
RAMP MOVE.BRAKE Substituted by 2200391 (#J# Model Only)
5630394
Not Available
17
RAMP STATION.BRAKE Substituted by 2200391 (#J# Model Only)
5630395
Not Available
18
BOLT SOC. HD.(10)
7512292
Not Available
19
ARM BRAKE CALIPER (#J# Model Only)
5222664
Not Available
20
Washer Belleville
7555828
Not Available
21
NUT(10)
7542129
$9,44 Unit Price incl. VAT
22
KNOB BRAKE ADJUSTOR
1930691
Not Available
23
SEAL BRAKE
3610026
Not Available
24
SWITCH STOPLIGHT
4110089
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
