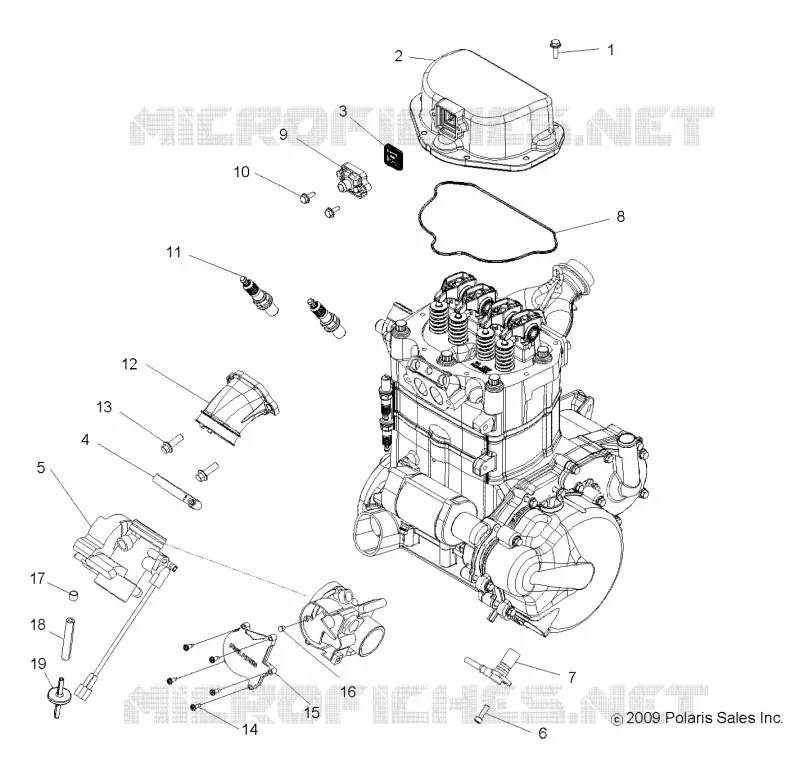

THROTTLE BODY AND VALVE COVER FOR RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ FROM 2010

THROTTLE BODY AND VALVE COVER

1

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$4,19 Unit Price incl. VAT

2

Cover Valve

5136099

Not Available

3

ASM-REED W/GASKET [INCL. RIVETS]

3021352

$62,99 Unit Price incl. VAT

4

CLAMP-HOSE 70MM DIA. WORM GEAR

7081623

$5,76 Unit Price incl. VAT

5

Sensor Throttle Position [Must also order O-Ring]

2410342

$195,08 Unit Price incl. VAT

5

Asm. Body Throttle [Incl. Throttle Position Sensor O-Ring]

1203944

$556,49 Unit Price incl. VAT

5

O-Ring TPS [Used w/2410342]

5413812

$3,66 Unit Price incl. VAT

6

SCREW

7517384

$16,79 Unit Price incl. VAT

7

SENSOR CRANK POSITION

2410720

$220,49 Unit Price incl. VAT

8

Seal Valve Cover

5412836

$13,64 Unit Price incl. VAT

9

Cover Breather

5432533

$16,79 Unit Price incl. VAT

10

SCR-M5X.80X20-HX/FL-Y/D

7516607

$19,94 Unit Price incl. VAT

11

PLUG SPARK CHAMPION RC7YC3

3021671

$7,34 Unit Price incl. VAT

12

Adapter

1240494

$115,49 Unit Price incl. VAT

13

SCR-M8X1.25X25-HX/FL-Y/D

7516734

$5,76 Unit Price incl. VAT

14

Screw Shoulder

3131515

$19,94 Unit Price incl. VAT

15

Asm. Cover w/O-Ring

1202578

Not Available

16

Guide Throttle Cable

3131514

$62,99 Unit Price incl. VAT

17

CLAMP-HOSE (LARGE GREEN)

7080307

$1,56 Unit Price incl. VAT

18

Hose

8450113

Not Available

19

VALVE CHECK

7052038

$20,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
