ENGINE, STATOR AND FLYWHEEL FOR RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ FROM 2010

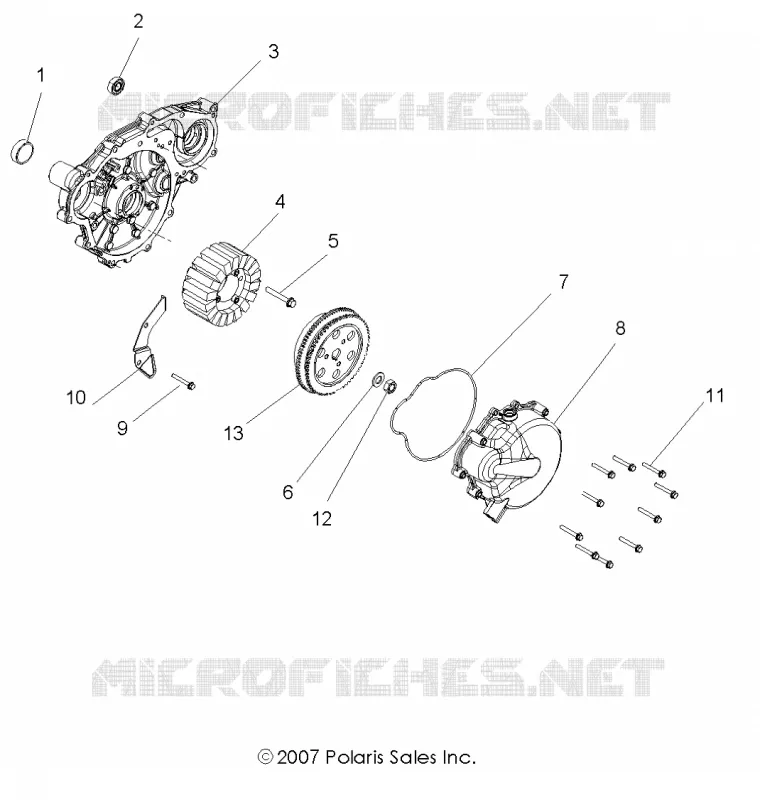

ENGINE, STATOR AND FLYWHEEL

1

SEAL FLANGED

5412881

$57,74 Unit Price incl. VAT

2

SEAL OIL

5412455

$41,99 Unit Price incl. VAT

3

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

3

PIN DOWEL

7661946

$9,44 Unit Price incl. VAT

3

Asm. Engine Cover Magneto

1203626

$404,24 Unit Price incl. VAT

4

Stator

4011982

$1 889,99 Unit Price incl. VAT

5

SCR-M6X1.0X35 SOC/CP-Y/D

7517848

$10,49 Unit Price incl. VAT

6

WASHER

7555907

$10,49 Unit Price incl. VAT

7

Seal Stator Cover [Built 12/15/09 and After]

5413826

$7,34 Unit Price incl. VAT

7

O-Ring

5412458

Not Available

8

Asm. Cover Stator

1203334

Not Available

8

BUSHING

3514553

Not Available

8

Asm. Cover Stator [Incl. Bushing][Built 12/15/09 and After]

1204132

Not Available

9

SCR-M6X1.0X45 HX-FL-Y/D

7517950

$10,49 Unit Price incl. VAT

10

Bracket Wire Holddown

5245364

$73,49 Unit Price incl. VAT

11

SCR-M6X1.0X45 HX-FL-Y/D

7517950

$10,49 Unit Price incl. VAT

12

NUT

7547213

$9,44 Unit Price incl. VAT

13

Flywheel

4011981

$1 889,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
