1
Engine displacement
800
2
Year
2010
3
Trim
RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ
4
Parts Catalog

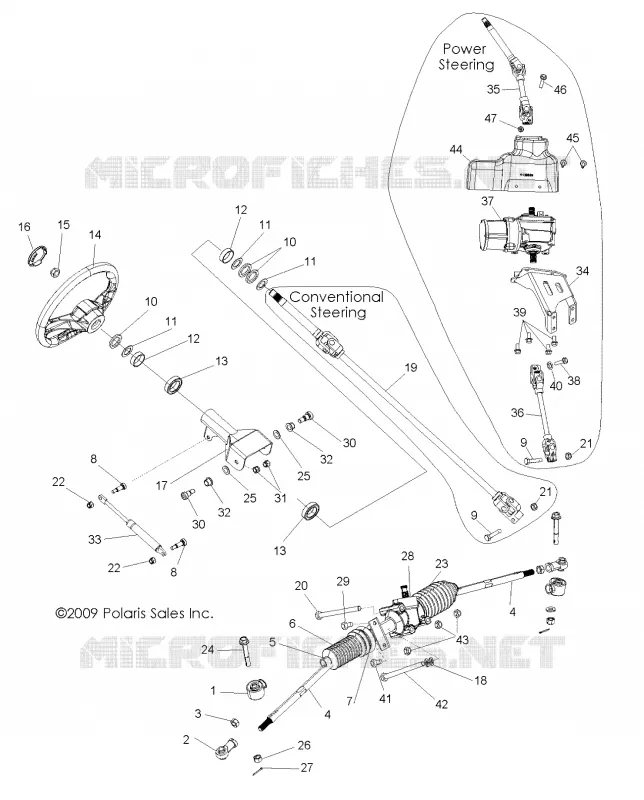

STEERING
5
Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUAL
by
FRONT SUSPENSION CONTROL ARMS
STEERING
13
13
14
15
16
17
18
19
20
21
21
22
22
23
24
25
25
26
27
28
29
30
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
1
BOOT SEAL ROD END
5411920
5412929
$20,99 Unit Price incl. VAT
2
ROD END [INCL. 1]
7061054
7061138
$104,99 Unit Price incl. VAT
3
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BELLOWS CLAMP SMALL
7080978
$4,19 Unit Price incl. VAT
6
BOOT PASSENGER SIDE RACK
5412013
$104,99 Unit Price incl. VAT
7
CLAMP LARGE BELLOWS
7080979
$10,49 Unit Price incl. VAT
8
SCR-SH-M6X1.0X9.5 12.9 ZY3
7518786
$4,19 Unit Price incl. VAT
9
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
10
WASHER-NEOPREME 28 OD X 20 ID
7556482
$7,34 Unit Price incl. VAT
11
WASHER-30MM ODX 21MM ID X 1.5
7556483
$7,34 Unit Price incl. VAT
12
SPACER-STEERING SHAFT
5252796
$9,44 Unit Price incl. VAT
13
BEARING-STEERING
3514686
$16,79 Unit Price incl. VAT
14
WHEEL-STEERING 14#
1823623
$246,74 Unit Price incl. VAT
15
NUT
7547188
$10,49 Unit Price incl. VAT
16
CAP-STEERING WHEEL
5436536
$62,99 Unit Price incl. VAT
17
Asm. Tube Pivot Black [Incl. 13]
1017485
$257,24 Unit Price incl. VAT
18
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
19
Shaft Steering Upper/Lower [Built 1/02/09 and After]
1823681
$472,49 Unit Price incl. VAT
20
Bolt
7518895
$7,34 Unit Price incl. VAT
21
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
22
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
23
BOOT DRIVERS SIDE RACK
5412012
$115,49 Unit Price incl. VAT
24
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
25
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
26
NUT-M10X1.25-HX-LOCK-Y(10)
7547177
7548155
$1,56 Unit Price incl. VAT
27
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
28
Asm. Gear Box Steering [Incl. 1-7 23]
1823497
$1 034,24 Unit Price incl. VAT
29
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
30
SCR-SH-SHDR 0.5X0.5 3/8-16 ZY3
7517607
$10,49 Unit Price incl. VAT
31
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
32
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
33
Asm. Shock Oil Locking
7043523
7043810
$173,24 Unit Price incl. VAT
34
MOUNT EPS BLACK [AK][AS]
1017716458
$225,74 Unit Price incl. VAT
35
SHAFT STEERING EPS UPPER
1823749
$262,49 Unit Price incl. VAT
36
Shaft Steering EPS Lower [AZ]
1823750
Not Available
37
Asm. Power Steering [AZ]
2411615
$1 691,54 Unit Price incl. VAT
38
SCR-HH-M8X1.25X30 8.8 ZY3
7517924
$8,39 Unit Price incl. VAT
39
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
40
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
41
BOLT 5/16-18X3/4
7512371
$9,44 Unit Price incl. VAT
42
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
43
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
44
COVER EPS
5438626
$68,24 Unit Price incl. VAT
45
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
46
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
47
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
