BODY, BOX MOUNTING AND LATCH FOR RANGER CREW 1000 EPS FROM 2018

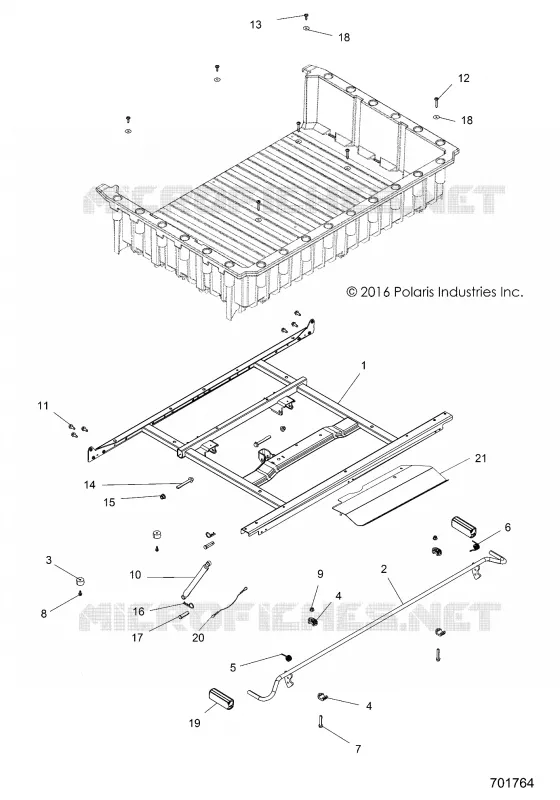

BODY, BOX MOUNTING AND LATCH

1

WELD-BOX SUPPORT SHORT BLK [U99AV BV]

1023059329

$614,24 Unit Price incl. VAT

2

LATCH BOX MATTE BLACK

1020411458

$188,99 Unit Price incl. VAT

3

BUMPER-BOX [FROM 08/01/2023]

5414343

$10,49 Unit Price incl. VAT

4

BUSHING-BOX LATCH

5434226

$7,34 Unit Price incl. VAT

5

SPRING-LATCH

7044325

$13,64 Unit Price incl. VAT

6

SPRING-LATCH

7044324

$13,64 Unit Price incl. VAT

7

SCR-M8X1.25X50 HX/FL-Y

7517793

$10,49 Unit Price incl. VAT

8

RIVET-POP 3/16 (.376-.500) AL-LFB

7621460

$2,09 Unit Price incl. VAT

9

NUT-M8X1.25 HXFLG NYLON INS

7547317

$5,24 Unit Price incl. VAT

10

SHOCK-BOX DUMP SM SINGLE LOBE

7044674

$125,99 Unit Price incl. VAT

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$4,19 Unit Price incl. VAT

12

SCR-TXTH-M6X1.0X45 RIE [FROM 09/01/2023]

7519722

$3,14 Unit Price incl. VAT

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$7,34 Unit Price incl. VAT

14

SCR-HXFL-M10X1.25X80 8.8 ZOD

7519363

$4,19 Unit Price incl. VAT

15

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

16

CLIP-HITCHPIN .148X3 1/16

7661067

$4,19 Unit Price incl. VAT

17

PIN-CLEVIS 1/2 X 1 3/4

7661878

$4,19 Unit Price incl. VAT

18

WASHER-.281X1.00X.051

7556329

$2,09 Unit Price incl. VAT

19

HANDLE BOX LATCH

5450278

$62,99 Unit Price incl. VAT

20

CABLE-DUMP BED LIMITER

7082244

$20,99 Unit Price incl. VAT

21

SHIELD ENGINE

5263935

$178,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
