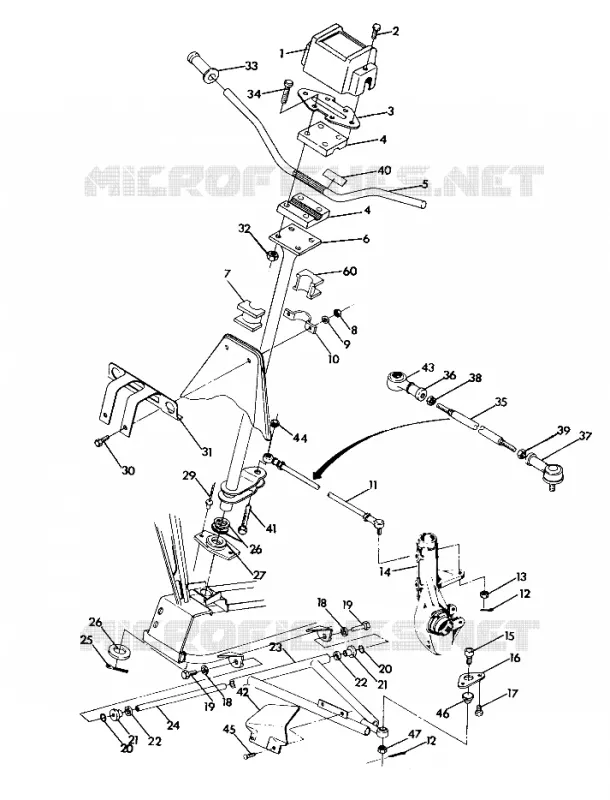

STEERING ASSEMBLY 250 4X4 FOR TRAIL BOSS 4X4

TANK FUEL Substituted by 2511323

5430968

Not Available

PAD HANDLEBAR

5810379

$73,49 Unit Price incl. VAT

GASKET-GAS CAP

5810144

$10,49 Unit Price incl. VAT

BOLT(10) Substituted by 7515197

7512286

7515197

$2,09 Unit Price incl. VAT

CAP GAS (BLACK)

5430725

$47,24 Unit Price incl. VAT

MOUNT HDLBR. PAD Substituted by 5245051

5220946

$9,23 Unit Price incl. VAT

BLOCK HANDLEBAR Substituted by 5630187-067 (SS)

5630187

$8,39 Unit Price incl. VAT

Vent Tank

5431053

$47,24 Unit Price incl. VAT

LINE VENT (38.0##) Substituted by 8360009-600

5521087

8360009-600

$83,99 Unit Price incl. VAT

TUBE HANDLEBAR Substituted by 5224316-067

5224316132

Not Available

POST STEERING

1843030067

Not Available

BOLT

7512310

$4,19 Unit Price incl. VAT

Bracket Mounting Rear RH

5222155

Not Available

Bracket Mounting Rear LH

5222154

Not Available

BUSHING STRG. UPPER Substituted by 5431572

5430966

5433416

$16,79 Unit Price incl. VAT

SCREW(10)

7512208

$7,34 Unit Price incl. VAT

BRKT R.TANK MT. Substituted by 5220916-067

5220916

Not Available

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

TIE ROD ASM. Substituted by 1822310

1822081

Not Available

PIN COTTER

7661203

$2,09 Unit Price incl. VAT

DUCT INLET DOWN TUBE

5431006

$132,29 Unit Price incl. VAT

NUT CASTLE(10)

7546904

$9,44 Unit Price incl. VAT

SCREW SELF-TAP(10)

7522004

Not Available

LEVER FUEL

5431021

$9,44 Unit Price incl. VAT

HUB STRUT ASM LH (Incl. 6 18 20 23 24)

1843033

Not Available

HUB STRUT ASM RH (Incl. 6 18 20 23 24)

1843034

Not Available

SPRING LEVER COMPRESS.

7041209

$15,74 Unit Price incl. VAT

BALL JOINT Substituted by 7080673 (Incl. 32-34)

7080364

7061306

$52,49 Unit Price incl. VAT

LEVER EXT. FUEL

5431020

Not Available

BRACKET-BALL JOINT

5211121

$62,99 Unit Price incl. VAT

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$2,09 Unit Price incl. VAT

CLAMP

7080236

$3,14 Unit Price incl. VAT

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

LINE FUEL (6 FT.)

5521204

Not Available

BOLT(10) Substituted by 7512492

7515458

7512492

$2,09 Unit Price incl. VAT

GASKET FUEL VALVE

5810308

Not Available

O RING

5410458

Not Available

VALVE FUEL Substituted by 7051002

7052046

Not Available

BEARING #A# ARM Substituted by 2200474

3576509

2200474

$115,49 Unit Price incl. VAT

BUSHING A-ARM (#J# Model Only)

3563604

Not Available

WASHER SPRING LOCK

7552801

$3,14 Unit Price incl. VAT

WASHER(10)

7555774

Not Available

BOLT BLACK(10)

7512282

$2,09 Unit Price incl. VAT

A FRAME LH Substituted by 2200481

1580033067

Not Available

A FRAME RH Substituted by 2200482

1580034067

$246,74 Unit Price incl. VAT

SHAFT #A-ARM#

5020529

Not Available

PAD SILENCER

5810423

Not Available

PAD

5810317

Not Available

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

BUSHING(10)

7555781

Not Available

BUSHING STRG. LOWER Substituted by 5431570

5430895

Not Available

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

$2,09 Unit Price incl. VAT

Bolt

7512315

$9,44 Unit Price incl. VAT

BRKT IGN.PANEL Substituted by 5220965-067

5220965

Not Available

NUT NYLOK

7542122

$2,09 Unit Price incl. VAT

GRIP HANDLEBAR

5431030

5433834-070

$52,49 Unit Price incl. VAT

BOLT (10)

7512265

$7,34 Unit Price incl. VAT

TIE ROD

5020528

Not Available

ROD END RH Substituted by 1822179

7060149

Not Available

ROD END

7060147

$115,49 Unit Price incl. VAT

NUT-3/8-24-2B-Z

7542401

$4,19 Unit Price incl. VAT

NUT LH 10 MM.(10)

7546902

Not Available

DECAL O#RIDE SW.(4X4) Substituted by 7076273

7072827

Not Available

BOLT(10) Substituted by 7515554

7515507

Not Available

SHIELD RH CV JOINT Substituted by 5431149-070

5431149

$47,24 Unit Price incl. VAT

SHIELD LH CV JOINT Substituted by 5431150-070

5431150

Not Available

BOOT SEAL ROD END

5410540

$11,54 Unit Price incl. VAT

Nut

7542403

Not Available

SCREW(10)

7512017

$9,44 Unit Price incl. VAT

BOOT RUBBER

5410548

5412658

$9,44 Unit Price incl. VAT

NUT-3/8-24 HX CA GR5-Y

7542438

$3,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
