REAR WHEEL DRIVE ASSEMBLY 250 4X4 FOR TRAIL BOSS 4X4 - W918127 FROM 1991

FRONT WHEEL ASSEMBLY 250 4X4

SWING ARM WELDMENT/REAR SHOCK ASM. 250 4X4

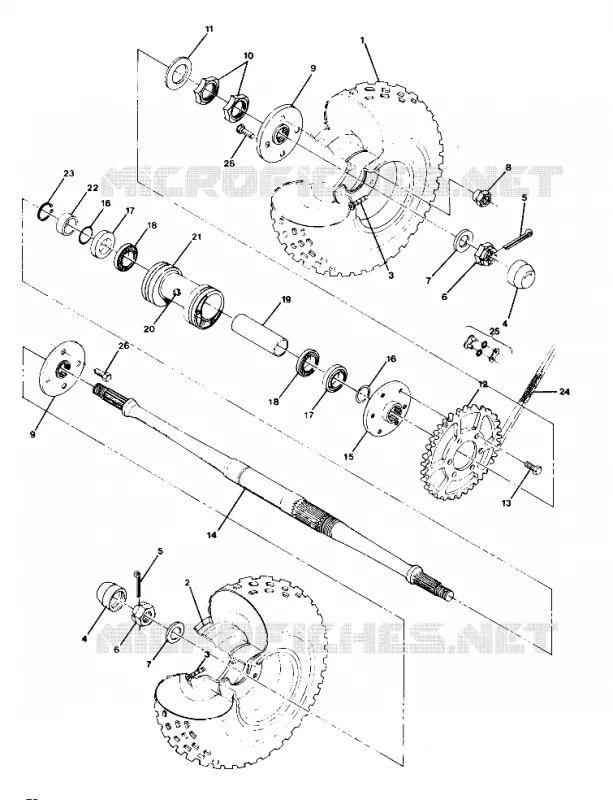

REAR WHEEL DRIVE ASSEMBLY 250 4X4

1

TIRE R(24X11-10)

5410479

Not Available

2

RIM REAR

1520145

Not Available

3

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

4

COVER DUST HUB Substituted by 5411164

5410404

$52,49 Unit Price incl. VAT

5

PIN-COTTER 1/8X1 1/2-Y

7661404

$9,44 Unit Price incl. VAT

6

NUT CASTLE(10)

7543005

Not Available

7

Washer Flat

7555745

Not Available

8

Nut

7542714

$3,14 Unit Price incl. VAT

9

HUB WHEEL Substituted by 2200341

5130664

$173,24 Unit Price incl. VAT

10

Nut Jam

5020468

$68,24 Unit Price incl. VAT

11

WASHER(10)

7555764

Not Available

12

SPROCKET 42T Substituted by 3222070

3223009

Not Available

13

BOLT(10)

7515488

Not Available

14

AXLE REAR

5020504

$307,64 Unit Price incl. VAT

15

HUB SPROCKET WELD Substituted by 1520170

1011559

Not Available

15

SPROCKET HUB ASM.

1520170

Not Available

16

O RING 1 5/16(10)

5410415

Not Available

17

SEAL REAR AXLE

3610013

Not Available

18

BEARING BALL

3515501

$47,24 Unit Price incl. VAT

19

TUBE BEARING SPACER

5010204

Not Available

20

FITTING LUB W/BALL

7080306

$5,76 Unit Price incl. VAT

21

HOUSING AXLE

5130663

Not Available

22

SPACER BEARING

5010206

$68,24 Unit Price incl. VAT

23

Ring Retaining

7710405

$9,44 Unit Price incl. VAT

24

CHAIN DRIVE 108P (Includes Connector)

3224045

Not Available

25

CONNECTOR LINK

3225024

$47,24 Unit Price incl. VAT

26

Screw

7512673

$5,76 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
