1
Engine displacement
800
2
Year
2010
3
Trim
RZR 4 800 EFI - R10XH76AA
4
Parts Catalog

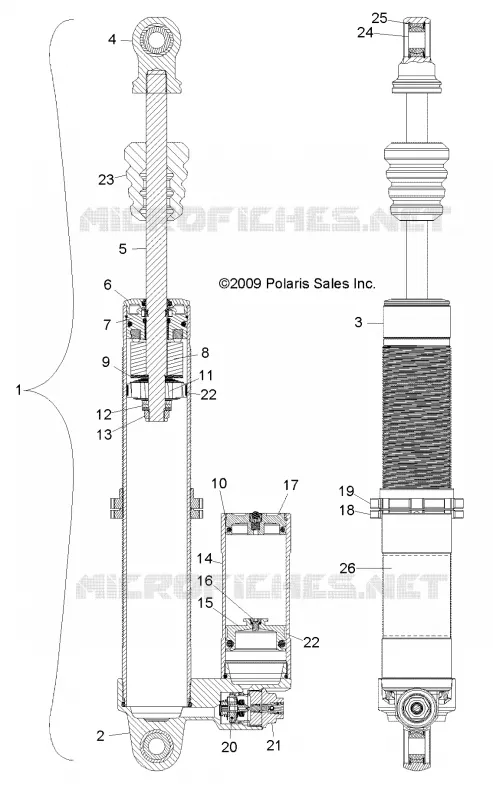

REAR SUSPENSION SHOCK
5
Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by
REAR SUSPENSION SHOCK MOUNTING
REAR SUSPENSION SHOCK
23
24
25
26
1
Kit Rebuild
1500865
$88,19 Unit Price incl. VAT
1
Shock Rear [Built 3/08/10 and After]
7043674
Not Available
1
Shock Rear [Built 3/07/10 and Before]
7043564
Not Available
2
Asm. Body Cap
1500859
$482,99 Unit Price incl. VAT
3
Body
1500846
Not Available
4
Eyelet [Built 3/08/10 and After][Use w/7043674 Only]
1500849
$230,99 Unit Price incl. VAT
4
Eyelet [Built 3/07/10 and Before][Use w/7043564 Only]
1500833
Not Available
5
Shaft
1500834
Not Available
6
ASM. BEARING CAP
1500835
$157,49 Unit Price incl. VAT
7
Asm. Bearing
1500836
$157,49 Unit Price incl. VAT
8
Spacer Shaft
1500837
Not Available
9
PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH Ø 0.620 SHAFT]
1500470
$20,99 Unit Price incl. VAT
10
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS
1500236
$17,84 Unit Price incl. VAT
11
Piston
1500840
$79,47 Unit Price incl. VAT
12
Plate: Back-Up [0.875 OD X 0.503 ID X 0.100 TH]
1500841
$20,99 Unit Price incl. VAT
13
Fastener Standard: Nut Lock [1/2-20 X 0.313 TLG]
1500472
$41,99 Unit Price incl. VAT
14
Reservoir
1500614
$264,06 Unit Price incl. VAT
15
Piston Floating
1500515
Not Available
16
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE COMPLETE
1500161
$68,24 Unit Price incl. VAT
17
ASM. END CAP
1500765
$188,99 Unit Price incl. VAT
18
Ring Preload Jam Nut
1500576
$35,69 Unit Price incl. VAT
19
Ring Preload
1500575
$45,14 Unit Price incl. VAT
20
Piston CD Conc. Adj.
1500616
$27,92 Unit Price incl. VAT
21
Cartridge CD Single Adj.
1500617
Not Available
22
BEARING EXTERNAL
1500230
$54,59 Unit Price incl. VAT
23
Bumper: B/O [Ø 0.620 Shaft 2.350 TLG] MCU
1500577
1500844
$52,49 Unit Price incl. VAT
24
Bearing Spherical
1500524
$74,54 Unit Price incl. VAT
25
RING-RET. SPIRAL
1500828
$16,79 Unit Price incl. VAT
26
Decal Reservoir
1500845
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
