Engine displacement
800
2
Year
2010
3
Trim
RZR 4 800 EFI - R10XH76AA
4
Parts Catalog

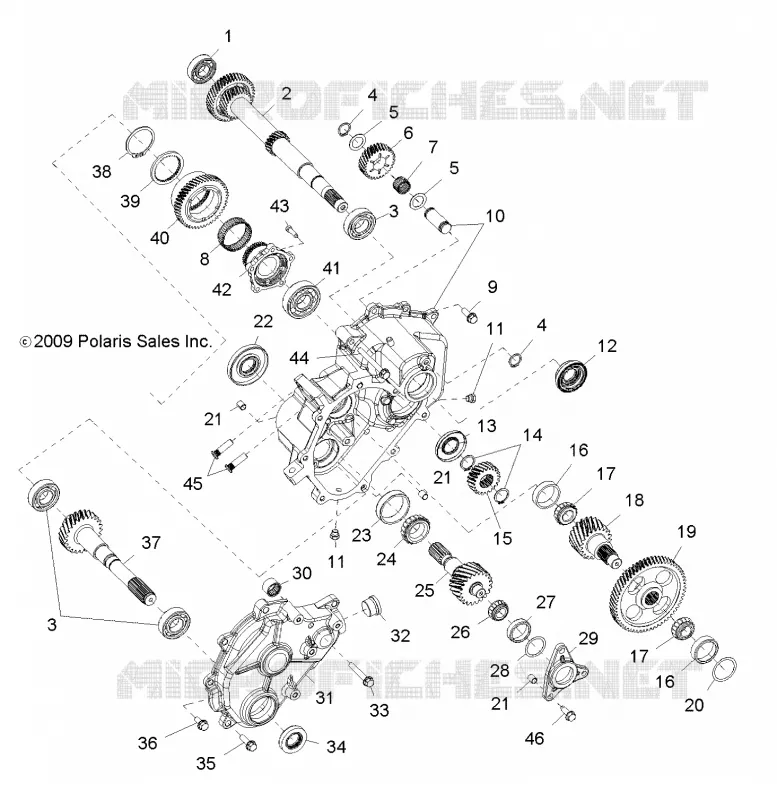

DRIVE TRAIN, MAIN GEARCASE INTERNALS 1 (BUILT 5/17/10 AND AFTER)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR HALF SHAFT
by
DRIVE TRAIN, MAIN GEARCASE INTERNALS 2 (BUILT 5/16/10 AND BEFORE)
DRIVE TRAIN, MAIN GEARCASE INTERNALS 1 (BUILT 5/17/10 AND AFTER)
-
1
2
3
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
16
17
17
18
19
20
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
-
Asm. Transmission Sub [Incl. All]
3235269
Not Available
1
Bearing Ball
3234549
$34,64 Unit Price incl. VAT
2
Asm. Gear Shaft/Pin
3234550
$976,49 Unit Price incl. VAT
3
Bearing Ball
3234502
$54,59 Unit Price incl. VAT
4
Ring Retaining
3234552
$13,64 Unit Price incl. VAT
5
Washer Thrust
3234878
$26,24 Unit Price incl. VAT
6
Gear Reverse 29T
3234554
Not Available
7
Bearing Needle
3234555
$34,64 Unit Price incl. VAT
8
Bearing Needle
3234536
$54,59 Unit Price incl. VAT
9
BOLT FLANGE HEX
7518172
$13,64 Unit Price incl. VAT
10
Kit Transmission Housing [Incl. 4 12 13 22 45]
3235078
$868,34 Unit Price incl. VAT
11
PLUG DRAIN
5133731
$20,99 Unit Price incl. VAT
12
Seal Oil
3234551
$73,49 Unit Price incl. VAT
13
Seal Oil
3235073
$73,49 Unit Price incl. VAT
14
Ring Retaining
3234547
$9,44 Unit Price incl. VAT
15
Gear Main Pinion
3234548
$173,24 Unit Price incl. VAT
16
Bearing Cup
3234556
$20,99 Unit Price incl. VAT
17
Bearing Cone
3234557
$33,59 Unit Price incl. VAT
18
Shaft Pinion 20T
3234558
$293,99 Unit Price incl. VAT
19
Gear Main Output
3234559
$362,24 Unit Price incl. VAT
20
Kit Shim
3234560
$99,74 Unit Price incl. VAT
21
Bushing Dowel
3234503
$12,59 Unit Price incl. VAT
22
SEAL OIL PINION
3610102
$57,74 Unit Price incl. VAT
23
Cup Tapered Bearing
3235079
$73,49 Unit Price incl. VAT
24
Cone Tapered Bearing
3235080
$80,84 Unit Price incl. VAT
25
Shaft Pinion 21T
3234564
$451,49 Unit Price incl. VAT
26
Bearing Cone
3234565
$33,59 Unit Price incl. VAT
27
Bearing Cup
3234566
$27,29 Unit Price incl. VAT
28
Kit Shim
3234567
$68,24 Unit Price incl. VAT
29
Cap Bearing Retainer
3234568
$87,66 Unit Price incl. VAT
30
Bearing Needle
3234561
$34,64 Unit Price incl. VAT
31
Asm. Cover Transmission [Incl. 34]
3234496
$535,49 Unit Price incl. VAT
32
PLUG FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
33
Screw
3234571
$13,64 Unit Price incl. VAT
34
Seal Oil
3234570
$52,49 Unit Price incl. VAT
35
Screw
3234618
$17,84 Unit Price incl. VAT
36
Screw Flange
3234511
Not Available
37
Shaft Pinion 24T
3234569
$614,24 Unit Price incl. VAT
38
Ring Retaining
3234879
$26,24 Unit Price incl. VAT
39
Plate Retaining
3234874
Not Available
40
Gear Clutch Reverse 47T
3234542
3235290
$309,74 Unit Price incl. VAT
41
Bearing Ball
3234545
$53,85 Unit Price incl. VAT
42
Flange Park
3234877
Not Available
43
Screw
3235082
$10,49 Unit Price incl. VAT
44
Screw
3234901
Not Available
45
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
46
Screw
3235081
Not Available
