1
Engine displacement
0
2
Year
1992
3
Trim
TRAIL BOSS 4X4 - W928127
4
Parts Catalog
REAR WHEEL DRIVE ASSEMBLY 250 4X4 / W928127 (4922872287B011)
5
Parts Diagram
Parts Catalog
FRONT WHEEL ASSEMBLY 250 4X4 / W928127 (4922872287B010)
by
RIGHT CHAIN COVER ASSEMBLY 250 4X4 / W928127 (4922872287C003)

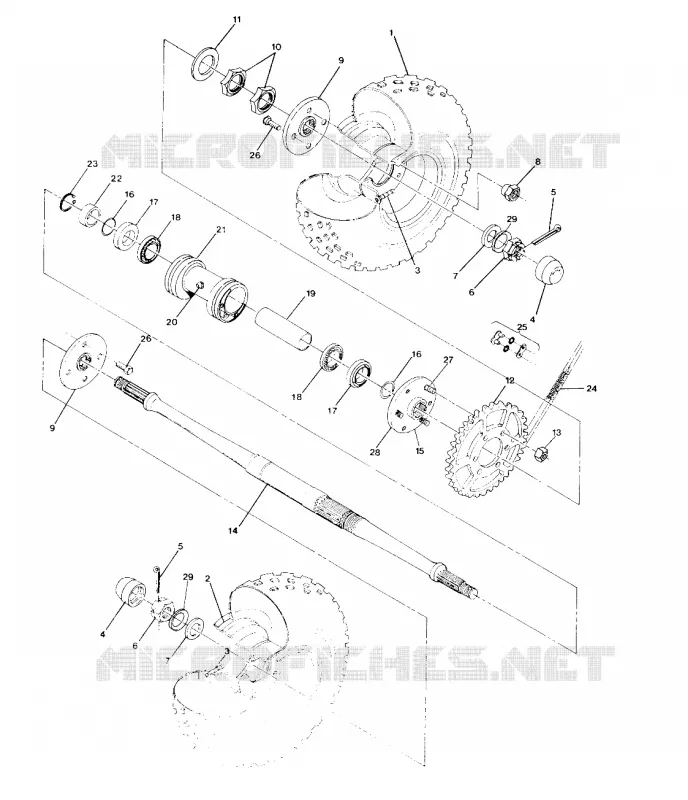

REAR WHEEL DRIVE ASSEMBLY 250 4X4 / W928127 (4922872287B011)
1
TIRE R(24X11-10)
5410479
Not Available
2
RIM REAR WELD. (Primed)
1520114
Not Available
3
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
4
COVER DUST HUB Substituted by 5411164
5410404
5413427
$52,49 Unit Price incl. VAT
5
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
6
NUT CASTLE(10)
7543005
Not Available
7
Washer Flat
7555745
Not Available
8
Nut
7542714
$3,14 Unit Price incl. VAT
9
HUB WHEEL Substituted by 2200341
5130767
$173,24 Unit Price incl. VAT
10
Nut Jam
5020468
$68,24 Unit Price incl. VAT
11
WASHER(10)
7555764
Not Available
12
SPROCKET 42T Substituted by 3222070
3223009
Not Available
13
Nut
7542403
Not Available
14
AXLE REAR
5020504
$307,64 Unit Price incl. VAT
15
SPROCKET HUB ASM.
1520170
Not Available
16
O RING 1 5/16(10)
5410415
Not Available
17
SEAL REAR AXLE
3610013
Not Available
18
BEARING BALL
3515501
$47,24 Unit Price incl. VAT
19
TUBE BEARING SPACER
5010204
Not Available
20
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
21
HOUSING AXLE
5130663
Not Available
22
SPACER BEARING
5010206
$68,24 Unit Price incl. VAT
23
Ring Retaining
7710405
$9,44 Unit Price incl. VAT
24
CHAIN DRIVE 88P Substituted by 3224056-088 (Includes Connector)
3224042
3221193-088
$272,99 Unit Price incl. VAT
25
CONNECTOR LINK
3225024
$47,24 Unit Price incl. VAT
26
Screw
7512673
$5,76 Unit Price incl. VAT
27
STUD(10)
7515513
$2,09 Unit Price incl. VAT
28
SPROCKET HUB ASM.
1520170
Not Available
29
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
