1
Engine displacement
0
2
Year
1990
3
Trim
TRAIL BOSS 4X4 - W908127
4
Parts Catalog

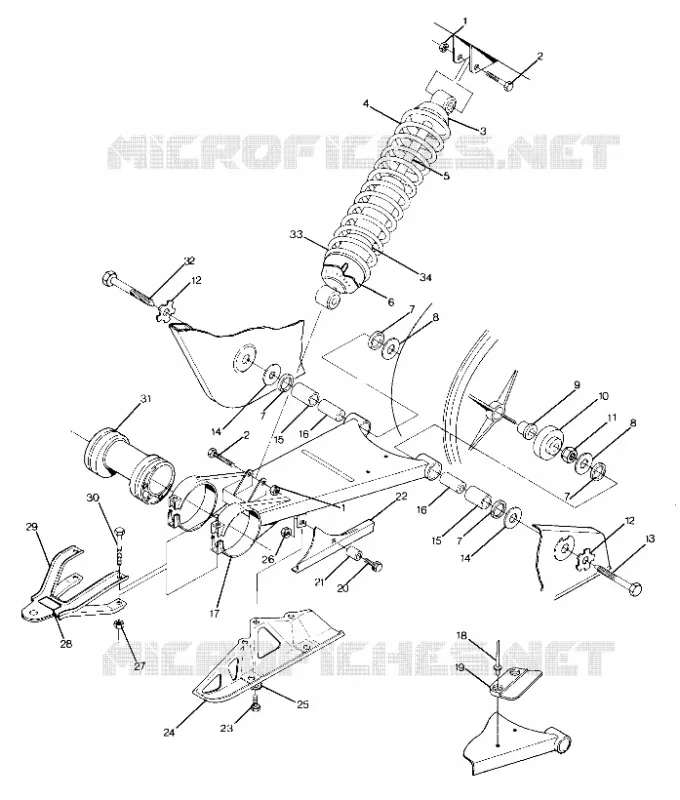

SWING ARM WELDMENT AND REAR SHOCK ASSEMBLY (4917731773025A)
5
Parts Diagram
Parts Catalog
REAR WHEEL DRIVE ASSEMBLY (4917731773023A)
by
CLUTCH COVER ASSEMBLY (4917731773027A)
SWING ARM WELDMENT AND REAR SHOCK ASSEMBLY (4917731773025A)
26
27
28
29
30
31
32
33
34
1
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
2
SCREW
7515415
$2,09 Unit Price incl. VAT
3
RETAINER SHOCK
5222118
5251753
$19,94 Unit Price incl. VAT
4
SPRING COMP REAR
7041204067
$88,19 Unit Price incl. VAT
5
SHOCK REAR Substituted by 7041448
7041218
7041448
$283,49 Unit Price incl. VAT
6
CAM ADJUSTING SPRING
5630334
$68,24 Unit Price incl. VAT
7
SEAL OIL
3610016
$52,49 Unit Price incl. VAT
8
WASHER(10)
7555779
Not Available
9
SUPPORT
3231517
Not Available
10
ROLLER CHAIN GUIDE
5431003
Not Available
11
NUT CROWN LOCK(10)
7542601
Not Available
12
PLATE BOLT LOCK
5220958
$68,24 Unit Price incl. VAT
13
BOLT SHOULDER
7512702
Not Available
14
BUSHING MACH.(10)
7555752
Not Available
15
BEARING
3576507
Not Available
16
BUSHING SWING ARM
5010255
Not Available
17
ARM SWING
1580048067
Not Available
18
RIVET
7621433
$2,09 Unit Price incl. VAT
19
GUIDE CHAIN
5431017
$2,93 Unit Price incl. VAT
20
Screw
7515304
$10,49 Unit Price incl. VAT
21
Bushing
5332828
$17,84 Unit Price incl. VAT
22
GUARD CHAIN(MODIFIED) Substituted by 5430776
5430952
$68,24 Unit Price incl. VAT
23
SCREW(10)
7512252
Not Available
24
GUARD SWING ARM Substituted by 1040166-067
1040166
Not Available
25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$3,14 Unit Price incl. VAT
26
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
27
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
28
DECAL HITCH Substituted by 7078261
7072533
Not Available
29
HITCH WELD. Substituted by 2200472
1040162067
Not Available
30
BOLT(10)
7512569
Not Available
31
HOUSING AXLE
5130663
Not Available
32
BOLT SHOULDER
7512701
$41,99 Unit Price incl. VAT
33
ADAPTER SPRING SEAT
5630351
Not Available
34
SLEEVE SPRING PROTECTOR
5431032
$68,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
