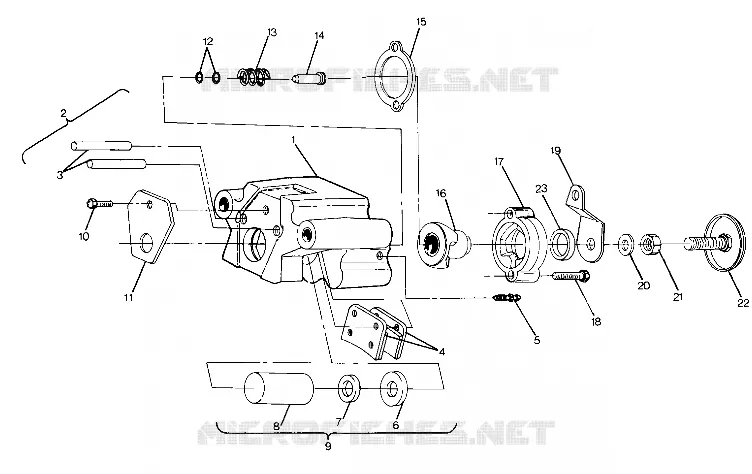

REAR BRAKE ASSEMBLY (4917731773032A) FOR TRAIL BOSS 4X4 - W908127 FROM 1990

CLUTCH COVER ASSEMBLY (4917731773027A)

WIRING HARNESS (4917731773033A)

REAR BRAKE ASSEMBLY (4917731773032A)

-

CALIPER ASM R.BRAKE Substituted by 1910073 (Complete)

1910046

Not Available

1

CALIPER REAR BRAKE

5130714

Not Available

2

KIT PAD R.BRAKE Substituted by 2200464 (Incl. 3 4)

1930644

$56,16 Unit Price incl. VAT

3

PIN DOWEL(10)

7661820

$20,99 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

BLEEDER SCREW 4WD

7080352

$5,76 Unit Price incl. VAT

6

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

8

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

9

KIT BRAKE SEALS&PISTON (Incl. 6-8 12 14 15)

1930666

Not Available

10

SCREW SEMS(10)

7512020

$4,19 Unit Price incl. VAT

11

PLATE PIN

5211143

Not Available

12

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

13

SPRING BRAKE COMP.

7041219

Not Available

14

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

15

GASKET BRAKE

5830009

Not Available

16

RAMP MOVE.BRAKE Substituted by 2200391

5630366

Not Available

17

RAMP STATION.BRAKE Substituted by 2200391

5630346

Not Available

18

BOLT SOC. HD.(10)

7512292

Not Available

19

ARM BRAKE CALIPER Substituted by 2200391

5222454

Not Available

20

WASHER [INTL]

7558301

$2,09 Unit Price incl. VAT

21

NUT(10)

7542129

$9,44 Unit Price incl. VAT

22

BRAKE ADJUSTER Substituted by 1930691

1910050

Not Available

23

SEAL BRAKE

3610026

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
