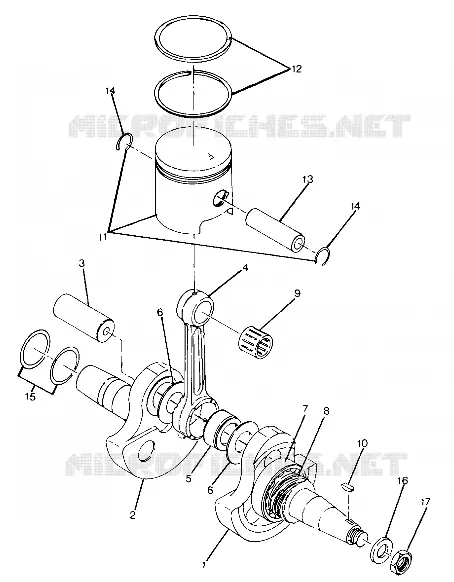

CRANKSHAFT AND PISTON ASSEMBLY (4917731773042A) FOR TRAIL BOSS 4X4

CRANKCASE AND CYLINDER (4917731773041A)

OIL PUMP ASSEMBLY (4917731773043A)

CRANKSHAFT Substituted by 3084582 (Incl. 1-8)

3083921

Not Available

SWITCH THERMAL IOS

3084284

Not Available

CRANKSHAFT #1

3083899

$423,14 Unit Price incl. VAT

CLAMP HOSE Substituted by 3086774

3084191

Not Available

CRANKSHAFT #2

3083927

Not Available

HOSE MAIN Substituted by 3086773

3084190

Not Available

CRANK PIN PTO

3082796

Not Available

ROD CONNECTING Substituted by 3082790

3083922

Not Available

BEARING BALL

3084183

Not Available

SEAL OIL

3084184

Not Available

BEARING LGE.END

3083803

Not Available

SEAL OIL

3084185

Not Available

SPACER

3083804

$36,74 Unit Price incl. VAT

BEARING BALL

3083805

Not Available

CASING WATERPUMP Substituted by 3086770 (Incl. 7 12 )

3084754

Not Available

CASING WATERPUMP Substituted by 3086770 (Incl. 4-7 12)

3084753

Not Available

STUD

3084182

Not Available

GEAR CRANKSHAFT Substituted by 3083745

3083414

Not Available

WASHER(10)

3080078

Not Available

BEARING SMALL END

3083626

Not Available

KEY WOODRUFF

3081543

$26,24 Unit Price incl. VAT

WASHER SPRING(10)

3080077

$4,19 Unit Price incl. VAT

PISTON .010 O/S (.010 Over) (Incl. 16)

3083943

Not Available

PISTON .020 O/S (.020 Over) (Incl. 16)

3083944

Not Available

PISTON * (Standard) (Incl. 16)

3083942

Not Available

NUT(10)

3084375

Not Available

PISTON (1.0 MM O/S) (1.00mm/.040# O/S)(Incl. 15)

3083972

Not Available

RING PISTON(O/S 1.0MM) (.040 Oversize)

3083974

$54,59 Unit Price incl. VAT

RING .010 O/S (0.10 Oversize)

3083678

Not Available

STUD Substituted by 3086772

3084520

Not Available

RING PISTON

3083546

Not Available

RING .020 O/S (.020 Over)

3083717

$40,94 Unit Price incl. VAT

SPACER #3 (0.1)

3084188

Not Available

PIN PISTON

3083838

2207579

$356,99 Unit Price incl. VAT

SPACER #4 (0.2)

3084189

Not Available

GASKET (Casing)

3084187

Not Available

CLIP PISTON PIN (10)

3083839

$7,34 Unit Price incl. VAT

SPACER #1

3083629

Not Available

SPACER #3

3083630

Not Available

IMPELLER

3084186

Not Available

WASHER Substituted by 3086767

3083904

Not Available

WASHER

3082206

$1,04 Unit Price incl. VAT

LOCKNUT

3083905

Not Available

NUT

3083073

$4,19 Unit Price incl. VAT

NUT FLANGE

3083856

$4,19 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
