1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP 850 - A09ZN85/8X ALL OPTIONS
4
Parts Catalog
DECALS
5
Parts Diagram
Parts Catalog
CLUTCH COVER
by
FUEL TANK

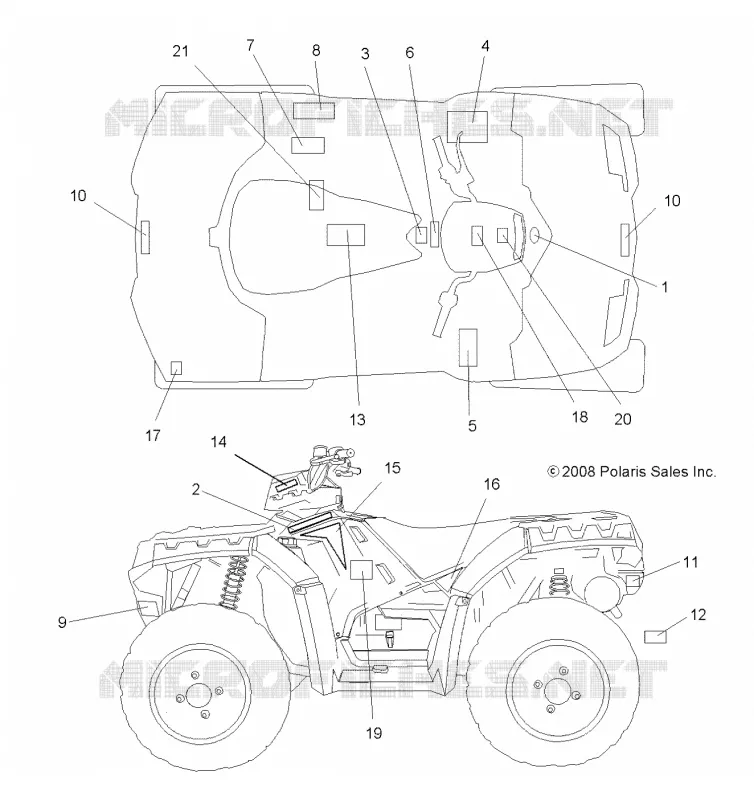

DECALS
1
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
15
15
15
16
16
16
16
17
18
19
19
20
21
1
LOGO-POLARIS STAR
7078465
$23,09 Unit Price incl. VAT
2
Decal #SPORTSMAN# Side
7175531
Not Available
2
Decal #SPORTSMAN# Side Gold [AQ]
7175647
Not Available
3
DECAL AGE WARNING 16
7175374
Not Available
4
DECAL WARNING GENERAL 1-UP
7175376
Not Available
5
DECAL WARNING DISC
7175511
Not Available
6
DECAL WARNING OVERRIDE 4X4 SWITCH
7175512
Not Available
7
DECAL NO PASSENGER WARNING
7175378
Not Available
8
Decal Warning Tire/Load 7/5 575
7175440
Not Available
9
Decal Reflector Yellow
7175316
Not Available
10
DECAL WARNING FRONT/REAR RACK 120/240
7175448
Not Available
11
DECAL REFLECTOR RED
7175320
$24,14 Unit Price incl. VAT
12
DECAL HITCH 1500 LBS.
7170509
$13,64 Unit Price incl. VAT
13
DECAL-WARN CLUTCH COVER
7175488
Not Available
14
Decal Pod Headlight #850# [AQ]
7175650
Not Available
14
Decal Pod Headlight #850#
7175529
Not Available
15
Decal Side #XP# Gold LH [AQ]
7175645
Not Available
15
Decal Side #XP# RH
7175533
Not Available
15
Decal Side #XP# LH
7175532
Not Available
15
Decal Side #XP# Gold RH [AQ]
7175646
Not Available
16
Decal Rear #AWD# Gold LH [AQ]
7175648
Not Available
16
Decal Rear #AWD# RH
7175535
Not Available
16
Decal Rear #AWD# Gold RH [AQ]
7175649
Not Available
16
Decal Rear #AWD# LH
7175534
Not Available
17
Decal Flag Rear
7175618
Not Available
18
Decal #NEW BREAK UP# (AB)
7171067
Not Available
19
Decal Side Panel Browning LH [AT]
7175663
Not Available
19
Decal Side Panel Browning RH [AT]
7175664
Not Available
20
Decal Headlight Pod Buckhead [AT]
7175665
Not Available
21
DECAL-CLUTCH RETAINING BOLT
7175883
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
