1
Engine displacement
850
2
Year
2009
3
Trim
SPORTSMAN XP 850 - A09ZN85/8X ALL OPTIONS
4
Parts Catalog

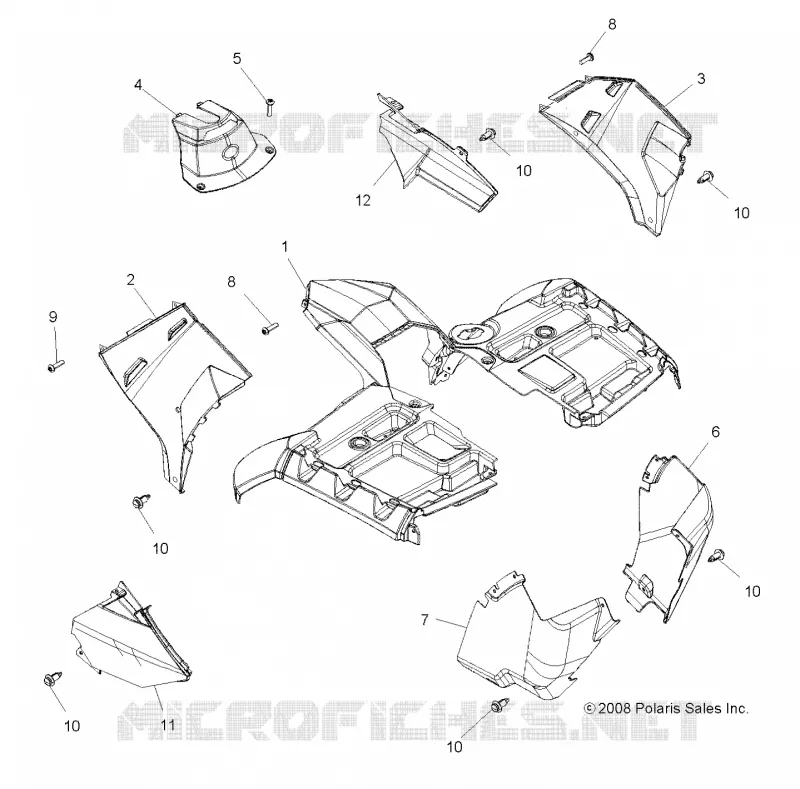

FRONT CAB
5
Parts Diagram
Parts Catalog
FRONT BUMPER AND MOUNTING
by
SEAT
FRONT CAB
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
5
6
7
8
8
9
10
10
10
10
10
10
11
12
1
Asm. Cab Front Sagebrush Green Metallic [Incl. Warning Decals][AX]
2633779498
Not Available
1
Asm. Cab Front Stealth Black [Incl. Warning Decals][AS]
2633779464
Not Available
1
ASM. CAB FRONT SUNSET RED [INCL. WARNING DECALS][AS]
2633779520
Not Available
1
Asm. Cab Front NBU Camo [Incl. Warning Decals][AQ]
2633794455
Not Available
2
Panel Side Upper RH Sunset Red [AL]
5437743520
$577,49 Unit Price incl. VAT
2
Panel Side Upper RH Stealth Black
5437743464
$430,49 Unit Price incl. VAT
2
Panel Side Upper RH NBU Camo [AQ]
5437815455
$264,06 Unit Price incl. VAT
2
Panel Side Upper RH Sagebrush Green Metallic [AX]
5437743498
Not Available
3
Panel Side Upper LH Sunset Red [AL]
5437741520
$370,64 Unit Price incl. VAT
3
Panel Side Upper LH Sagebrush Green Metallic [AX]
5437741498
$358,04 Unit Price incl. VAT
3
Panel Side Upper LH Stealth Black
5437741464
Not Available
3
Panel Side Upper LH NBU Camo [AQ]
5437814455
$278,24 Unit Price incl. VAT
4
COVER-FR PNTD STLTH BLK
5437739464
Not Available
4
COVER FRONT PAINTED SUNSET RED
5437739520
$241,49 Unit Price incl. VAT
4
Cover Front NBU Camo [AQ]
5437813455
$278,24 Unit Price incl. VAT
4
Cover Front Sagebrush Green Metallic [AX]
5437739498
Not Available
5
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
6
GUARD MUD FRONT LH BLACK
5437062070
$68,24 Unit Price incl. VAT
7
Guard Mud Front RH Black
5437063070
$68,24 Unit Price incl. VAT
8
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
9
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
10
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
11
Shield Exhaust Cover
2633777
2207153
$230,99 Unit Price incl. VAT
12
Panel Side Lower LH Black
5437476070
$62,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
