1
Engine displacement
850
2
Year
2011
3
Trim
SPORTSMAN XP 850 - A11ZN85AA/AQ/AZ
4
Parts Catalog

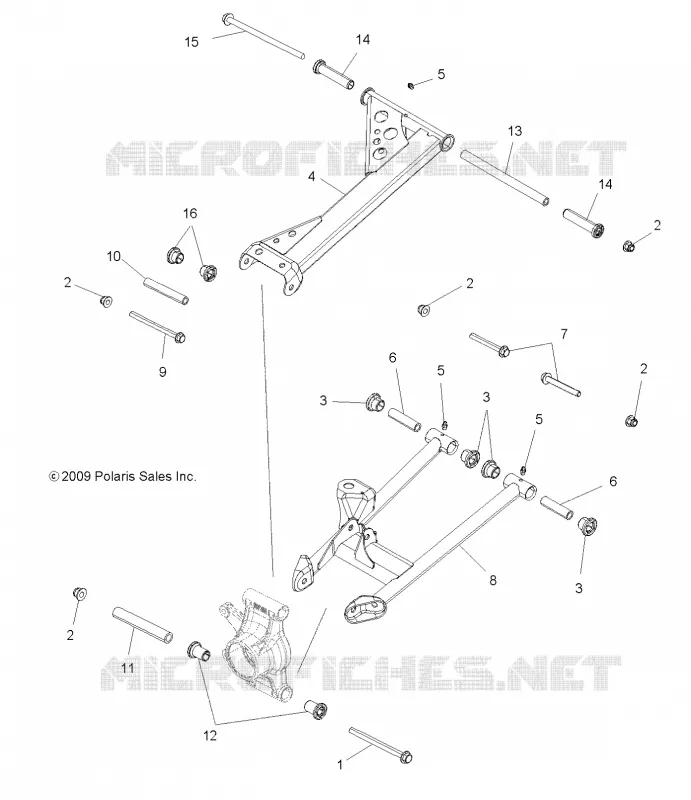

REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION A-ARMS
by
FRONT SHOCK
REAR SUSPENSION
1
2
2
2
2
2
3
3
3
4
4
5
5
5
6
6
7
8
8
8
8
9
10
10
11
12
13
13
14
14
15
16
1
SCR-HXFL-M10X1.5X140 8.8 ZY3
7518467
$10,49 Unit Price incl. VAT
2
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
3
Bushing Control Arm
5436798
$4,19 Unit Price incl. VAT
4
WELD-UCA REAR LH BLK
1017216067
1025619-067
$157,49 Unit Price incl. VAT
4
WELD-UCA REAR RH BLK
1017217067
1025620-067
$157,49 Unit Price incl. VAT
5
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
6
SHAFT A-ARM 63.5MM
5137346
$31,49 Unit Price incl. VAT
7
SCR-HXFL-M10X1.5X85 8.8 ZY3
7518466
$9,44 Unit Price incl. VAT
8
Arm Control Lower Rear LH Black [Built 1/22/11 and After]
1018215067
1019410-067
$188,99 Unit Price incl. VAT
8
Arm Control Lower Rear RH Black [Built 1/22/11 and After]
1018216067
1019411-067
$188,99 Unit Price incl. VAT
8
Arm Control Lower Rear LH Black [Built 1/21/11 and Before]
1017864067
1019410-067
$188,99 Unit Price incl. VAT
8
Arm Control Lower Rear RH Black [Built 1/21/11 and Before]
1017865067
1019411-067
$188,99 Unit Price incl. VAT
9
BOLT FLANGE
7518675
$10,49 Unit Price incl. VAT
10
Shaft Pivot
5135501
5137590
$16,79 Unit Price incl. VAT
10
SHAFT PIVOT
5137590
$16,79 Unit Price incl. VAT
11
SHAFT A-ARM LOWER CONTROL ARM [TO 8/2/2023]
5136473
5145086
$68,24 Unit Price incl. VAT
12
BUSHING LOWER CONTROL ARM
5437651
$12,59 Unit Price incl. VAT
13
Tube Pivot
5136468
5137594
$16,79 Unit Price incl. VAT
13
SHAFT-PIVOT 210.27MM ZINC YEL
5137594
$16,79 Unit Price incl. VAT
14
BUSHING-A-ARM LONG 102.36MM
5436973
$9,44 Unit Price incl. VAT
15
SCR-HXFL-M10X1.5X230 8.8 ZY3
7518472
$11,54 Unit Price incl. VAT
16
Bushing Control Arm
5436832
5439874
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
