1
Engine displacement
850
2
Year
2011
3
Trim
SPORTSMAN XP 850 - A11ZN85AA/AQ/AZ
4
Parts Catalog
SWITCHES, SENSORS, ECU AND CONTROL MODULES
5

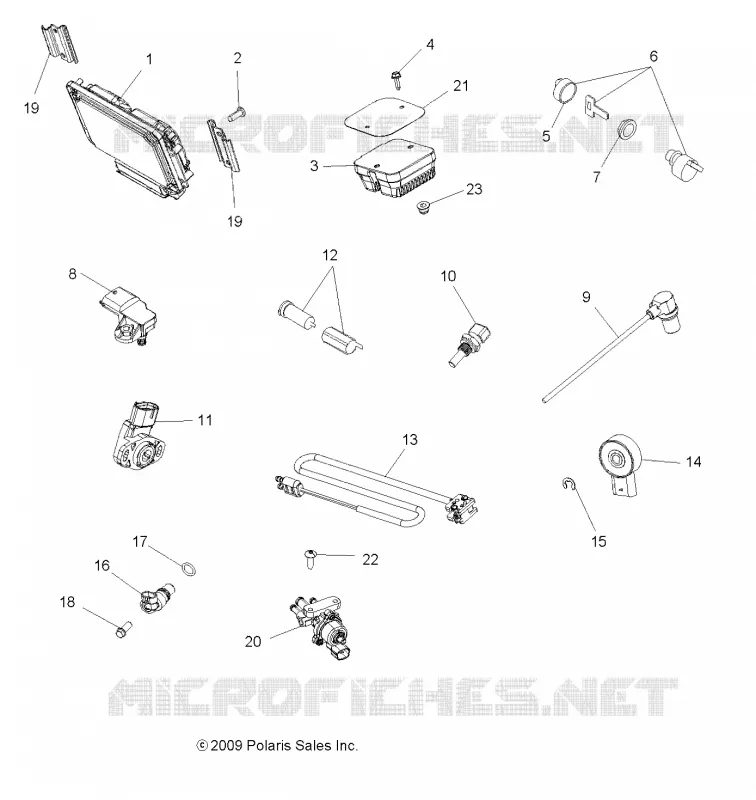

Parts Diagram
Parts Catalog
IGNITION SYSTEM
by
CRANKCASE
SWITCHES, SENSORS, ECU AND CONTROL MODULES
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
1
ECM
4012616
$1 018,49 Unit Price incl. VAT
2
SCR-#14X3/4 LG HI/LO/TAPER-M
7512095
$9,44 Unit Price incl. VAT
3
REGULATOR VOLTAGE
4012678
$519,74 Unit Price incl. VAT
4
SCR-HXFL-M6X1.0X30 RIE DGPNT
7519202
$7,34 Unit Price incl. VAT
5
Cover-Key
5433534
5465307
$26,24 Unit Price incl. VAT
6
SWITCH KEY 3 POSITION [INCL. 23-25]
4012165
4083589
$202,64 Unit Price incl. VAT
7
NUT-IGNITION SWITCH HOBBS
5433733
$41,99 Unit Price incl. VAT
8
Sensor T-Map
2411082
2411528
$178,49 Unit Price incl. VAT
8
Screw
7518541
$19,94 Unit Price incl. VAT
9
SENSOR CRANK POSITION [INCL. 7]
2411589
$141,74 Unit Price incl. VAT
10
SENSOR-THERMISTER
4010644
$141,74 Unit Price incl. VAT
11
SENSOR THROTTLE POSITION
3131705
$367,49 Unit Price incl. VAT
12
RECEPTACLE-POD MNT 12 VOLT
4010638
$52,49 Unit Price incl. VAT
13
KIT BRAKE LIGHT SWITCH
2202794
$131,24 Unit Price incl. VAT
14
SWITCH ROTARY 6-PIN ITW [GEAR POSITION]
3233835
3236115
$225,74 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
16
SENSOR SPEED
4012167
4082135
$204,74 Unit Price incl. VAT
17
O-RING
3234302
$13,64 Unit Price incl. VAT
18
SCREW. TORX PAN HEAD
3234329
3234898
$17,84 Unit Price incl. VAT
19
Bracket Mount ECU
5251244
$1,98 Unit Price incl. VAT
20
Valve IAC
4011638
$209,99 Unit Price incl. VAT
20
KIT HARNESS IAC
2878507
$272,99 Unit Price incl. VAT
21
COVER VOLTAGE REGULATOR
5253294
$20,99 Unit Price incl. VAT
22
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
$6,29 Unit Price incl. VAT
23
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
