1
Engine displacement
1050
2
Year
1997
3
Trim
SLTX - B974590
4
Parts Catalog

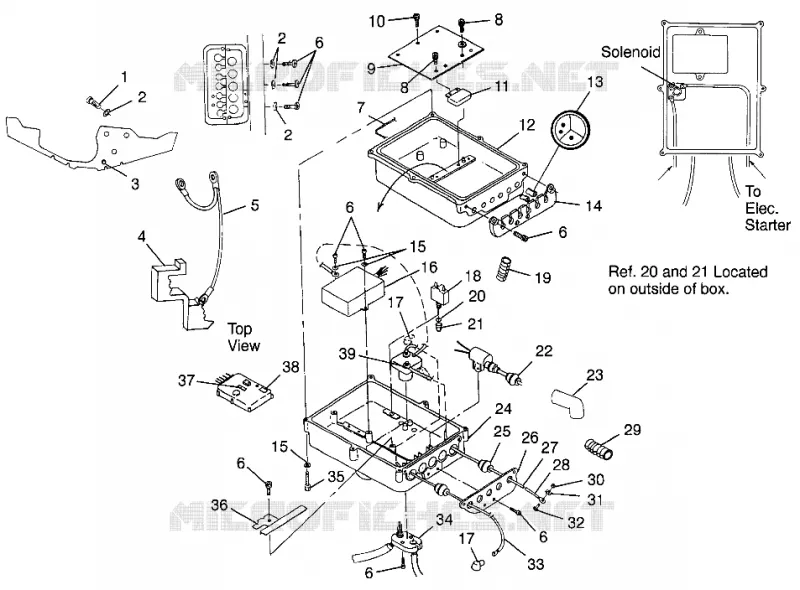

ELECTRICAL BOX SLTX B974590 AND INTL. SLTX I974590 (4941214121B009)
5
Parts Diagram
Parts Catalog
WATER INLET SLTX B974590 AND INTL. SLTX I974590 (4941214121B008)
by
CARBURETOR SLTX B974590 AND INTL. SLTX I974590 (4941214121C001)
ELECTRICAL BOX SLTX B974590 AND INTL. SLTX I974590 (4941214121B009)
1
BOLT(10)
7515127
Not Available
2
WASHER S.S.(10)
7555891
Not Available
3
GROMMET
5411158
Not Available
4
T-CLIP(10)
7080471
$6,29 Unit Price incl. VAT
5
HARNESS GND-CONTROL BOX
2460581
Not Available
6
BOLT S.S.(10)
7515118
Not Available
7
O-RING (ELEC.BOX)
5410912
$26,45 Unit Price incl. VAT
8
SCREW S.S.(10)
7512072
$0,62 Unit Price incl. VAT
9
BOARD TERMINAL MFD DIODE
4040080
Not Available
10
BOLT S.S.(10)
7512042
$4,71 Unit Price incl. VAT
11
REG./RECT/CUTOFF LR23 Substituted by 4060192
4060171
Not Available
12
BOX BOTTOM ELEC.
5131256
Not Available
13
GROMMET SECTION 2-HOLE
5410852
Not Available
13
O-RING (10)
5410817
$1,04 Unit Price incl. VAT
13
GROMMET SECTION NO HOLE
5410850
$3,45 Unit Price incl. VAT
14
PLATE 6-HOLE CAST
5630497
Not Available
15
WASHER(10)
7555836
$6,29 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
INSULATOR-CABLE
5410346
$12,59 Unit Price incl. VAT
18
CKT.BREAKER 15A.(WATER.)
2434011
$33,06 Unit Price incl. VAT
19
CONDUIT CONVOL. Substituted by 4010051-15
401005105
Not Available
20
O-RING
5410725
$1,67 Unit Price incl. VAT
21
BOOT THREADED RED
7080461
$17,94 Unit Price incl. VAT
22
GROMMET COIL
5410677
Not Available
23
CAP SPARK PLUG
4020159
Not Available
24
TOP ELEC.BOX
5131174
$119,16 Unit Price incl. VAT
25
GROMMET 16 GA.(10)
5410678
$3,45 Unit Price incl. VAT
26
PLATE 5-HOLE
5630416
Not Available
27
CABLE RED SOL./START.
4010081
Not Available
28
CONDUIT CONVOL(30 CM)
401005130
Not Available
28
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
29
CONDUIT FLEX 1.250ID
5521287132
Not Available
30
NUT 6 MM. S.S.(10)
7546705
$9,44 Unit Price incl. VAT
31
WASHER LOCK(10)
7552613
Not Available
32
BOLT(10)
7516809
Not Available
33
CABLE RED BATT/SOL.
4010082
Not Available
34
PLATE 2-HOLE
5630415
$19,83 Unit Price incl. VAT
35
BOLT(10)
7515119
Not Available
36
BRKT COIL RETAINER
5241182
Not Available
37
DECAL WARN HI.VOLT.
7073713
Not Available
38
DECAL ELECT.BOX RESET
7073734
Not Available
39
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
