1
Engine displacement
800
2
Year
2019
3
Trim
800 AXYS PRO-RMK 155 / SC SELECT / 3" SC
4
Parts Catalog
CHASSIS, CLUTCH GUARD AND FOOTRESTS
5
Parts Diagram
Parts Catalog
SIDE PANELSS
by
SWAY BAR

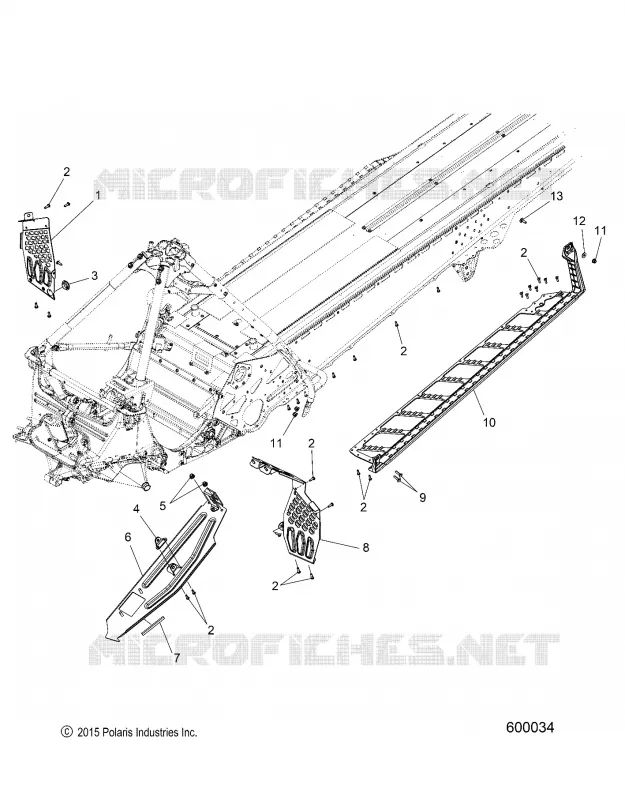

CHASSIS, CLUTCH GUARD AND FOOTRESTS
1
2
2
2
2
2
2
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
11
11
12
13
1
ASM. TOE STOP RH
1023936
$120,74 Unit Price incl. VAT
2
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
3
CAPLUG [QUICKDRIVE MODELS ONLY]
7080936
$5,24 Unit Price incl. VAT
4
WRENCH-8MMX10MM OPEN END
Not Available
5
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
6
ASM. GUARD CLUTCH [INCL. 2 12]
1022101
$115,49 Unit Price incl. VAT
7
TRIM EDGE 130MM
8360176
$73,49 Unit Price incl. VAT
8
ASM. TOE STOP LH
1020099
$120,74 Unit Price incl. VAT
9
SCR-RHCAR-M6X1.0X22 8.8 ZPC
7519338
$6,29 Unit Price incl. VAT
10
ASM. RUNNNINGBOARD RH IND SKY BLUE [SNOW CHECK]
1019346737
$445,19 Unit Price incl. VAT
10
ASM. RUNNNINGBOARD RH NATURAL [STOCK]
1019346
$411,59 Unit Price incl. VAT
10
ASM-RUNNINGBOARD LH LIME SQUEEZE [SNOW CHECK]
1019345630
$445,19 Unit Price incl. VAT
10
ASM-RUNNINGBOARD LH INDY RED [SNOW CHECK]
1019345293
$411,59 Unit Price incl. VAT
10
ASM. RUNNNINGBOARD RH LIME SQUEEZE [SNOW CHECK]
1019346630
$445,19 Unit Price incl. VAT
10
ASM. RUNNNINGBOARD RH INDY RED [SNOW CHECK]
1019346293
$411,59 Unit Price incl. VAT
10
ASM. RUNNNINGBOARD RH BLACK [SNOW CHECK]
1019346067
$390,59 Unit Price incl. VAT
10
ASM-RUNNINGBOARD LH IND SKY BLUE [SNOW CHECK]
1019345737
$445,19 Unit Price incl. VAT
10
ASM. RUNNNINGBOARD RH ORANGE BURST [SNOW CHECK]
1019346647
$465,14 Unit Price incl. VAT
10
ASM-RUNNINGBOARD LH ORANGE BURST [SNOW CHECK]
1019345647
$465,14 Unit Price incl. VAT
10
ASM-RUNNINGBOARD LH BLACK [SNOW CHECK]
1019345067
$390,59 Unit Price incl. VAT
10
ASM. RUNNNINGBOARD LH NATURAL [STOCK]
1019345
$411,59 Unit Price incl. VAT
11
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
12
WSHR-6.4X18.0X1.6 ZPB
7556064
$9,44 Unit Price incl. VAT
13
SCR-RHCARM6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
