1
Engine displacement
800
2
Year
2019
3
Trim
800 AXYS PRO-RMK 155 / SC SELECT / 3" SC
4
Parts Catalog

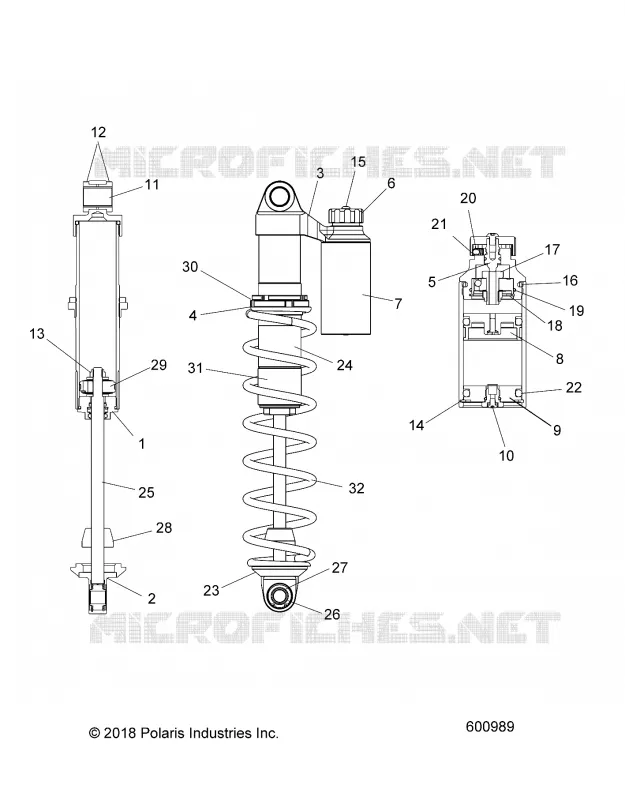

SHOCK, IFS W/RESERVOIR
5
Parts Diagram
Parts Catalog
SWAY BAR
by
STEERING, SKI ASM.
SHOCK, IFS W/RESERVOIR
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
-
SHOCK WALKER EVANS IFS W/RES
7044956
$1 254,74 Unit Price incl. VAT
1
ASM. SEAL HEAD
1800788
$220,49 Unit Price incl. VAT
2
LOOP SHAFT
1800540
$257,24 Unit Price incl. VAT
3
LOOP-PB 2# CLR
1800954
$545,99 Unit Price incl. VAT
4
SPRING ADJUSTER
1800724
$68,24 Unit Price incl. VAT
5
ASM-CLICKER STUD
1800758
$47,24 Unit Price incl. VAT
6
KNOB CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
7
BODY RESERVOIR
1800419
$173,24 Unit Price incl. VAT
8
PISTON IFP
1800739
$68,24 Unit Price incl. VAT
9
CAP END RESERVOIR BLACK
1800420
$68,24 Unit Price incl. VAT
10
ASM-CHARGE PORT
1800805
$73,49 Unit Price incl. VAT
11
SLEEVE
1800405
$62,99 Unit Price incl. VAT
12
BUSHING
1800406
$9,44 Unit Price incl. VAT
13
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
14
SNAP RING 1.75 ID
1800159
$10,49 Unit Price incl. VAT
15
SCREW BTN HD
1800357
$6,29 Unit Price incl. VAT
16
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
17
ASM-P/B CLICKER PISTON
1800750
$120,74 Unit Price incl. VAT
18
RING SNAP CLICKER
1800359
$6,29 Unit Price incl. VAT
19
O-RING CLICKER HOUSING
1800358
$2,09 Unit Price incl. VAT
20
BALL D-TENT
1800127
$12,59 Unit Price incl. VAT
21
SPRING-D-TENT
1800128
$20,99 Unit Price incl. VAT
22
O-RING
1800184
$10,49 Unit Price incl. VAT
23
RING SPRING RETAINING
1800658
$89,24 Unit Price incl. VAT
24
BODY IFS 7.463L BLK 1700012-AB
1801102
$283,49 Unit Price incl. VAT
25
SHAFT IFS 8.670L .50DIA.
1800955
$225,74 Unit Price incl. VAT
26
BEARING END
1800040
$152,24 Unit Price incl. VAT
27
SNAP RING END BEARING
1800041
$15,74 Unit Price incl. VAT
28
BUMPER
1800462
$68,24 Unit Price incl. VAT
29
ASM-PISTON 7044956
1800956
$173,24 Unit Price incl. VAT
30
NUT JAM
1800465
$99,74 Unit Price incl. VAT
31
WEAR SLEEVE
1800047
$73,49 Unit Price incl. VAT
32
SPRING COMPRESSION 100# MTGOLD [FOUNDERS EDITION ONLY]
7043460703
$141,74 Unit Price incl. VAT
32
SPRING COMPRESSION 100# MBLK
7043460458
$141,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
