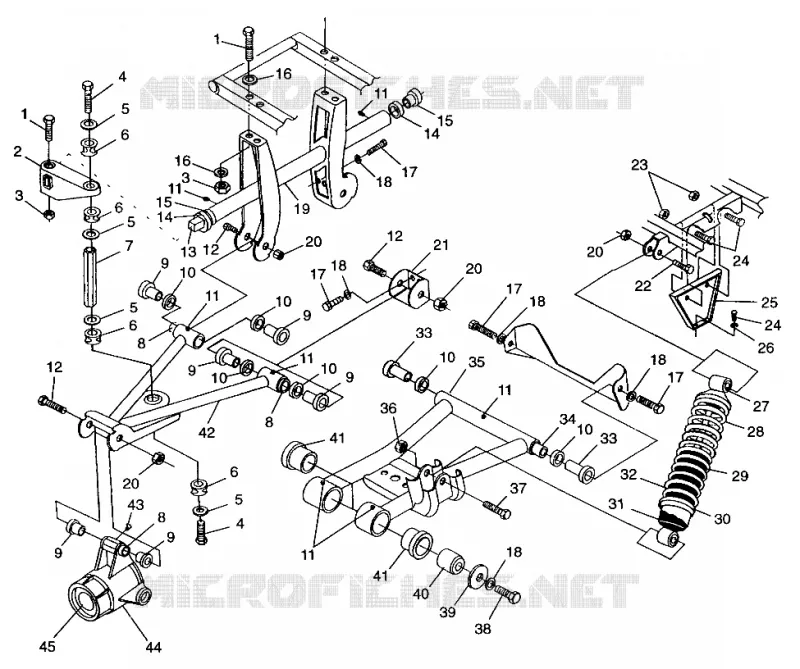

REAR SUSPENSION XPLORER 500 W97CD50A (4941354135C005)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH XPLORER 500 W97CD50A (4941354135C004)
by
REAR BRAKE XPLORER 500 W97CD50A (4941354135C007)
REAR SUSPENSION XPLORER 500 W97CD50A (4941354135C005)
1
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
12
13
14
14
15
15
16
16
17
17
17
17
18
18
18
18
18
19
20
20
20
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
33
34
35
35
35
35
36
37
38
39
40
41
41
42
42
42
42
43
44
45
1
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
2
ARM STAB.BAR BLK
1580107067
1543119-067
$99,74 Unit Price incl. VAT
3
NUT FLEX-LOC(10)
7542303
$11,54 Unit Price incl. VAT
4
SCREW(10)
7517231
$13,64 Unit Price incl. VAT
5
Washer Flat
7555761
$4,19 Unit Price incl. VAT
6
Bushing
5432598
$12,59 Unit Price incl. VAT
7
ROD LINKAGE STABILIZER
5020827
$99,74 Unit Price incl. VAT
8
Shaft A-Arm. Short
5020826
$23,09 Unit Price incl. VAT
9
BUSHING A-ARM SHORT Substituted by 5433063
5432091
5439270
$4,19 Unit Price incl. VAT
10
BUSHING A-ARM SPACER(10)
5020677
$19,94 Unit Price incl. VAT
11
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
12
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
13
BAR STAB.TUBE BLK.
5333393067
5334114-329
$178,49 Unit Price incl. VAT
14
WSHR-1.28X1.69X.075-Y
7555939
$7,34 Unit Price incl. VAT
15
BUSHING STAB.TUBE Substituted by 5433413
5432169
5438901
$16,79 Unit Price incl. VAT
16
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
17
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
18
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
19
SUPPORT STABILIZER BLK Substituted by 1541322-067
1580097067
Not Available
20
Nut
7542403
Not Available
21
BRKT A-ARM PIVOT BLK
5242077067
Not Available
22
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
23
NUT FLANGE
7542321
$2,09 Unit Price incl. VAT
24
BOLT(10)
7515321
Not Available
25
SUPPORT UPR.TRANS BLK
5224667067
$115,49 Unit Price incl. VAT
26
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
27
RETAINER SPRING
5131533
Not Available
28
SPRING COMP.REAR BLK
7041453067
7042311-067
$141,74 Unit Price incl. VAT
29
SLEEVE SPRING PROTECTOR
5431032
$68,24 Unit Price incl. VAT
30
CAM ADJUSTING SPRING
5630334
$68,24 Unit Price incl. VAT
31
SHOCK REAR ATV
7041454
$283,49 Unit Price incl. VAT
32
ADAPTER SPRING SEAT
5630351
Not Available
33
BUSHING A-ARM LONG. Substituted by 5433066
5431596
5436973
$9,44 Unit Price incl. VAT
34
SHAFT A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
35
CONTROL RH LOW BLK.
1040446067
Not Available
35
CONTROL LH LOW BLK
1040445067
Not Available
36
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
37
SCREW
7515415
$2,09 Unit Price incl. VAT
38
Screw
7517297
$9,44 Unit Price incl. VAT
39
Washer
7555936
$7,34 Unit Price incl. VAT
40
BUSHING BRNG.CARRIER ALUM Substituted by 5131883
5020825
$68,24 Unit Price incl. VAT
41
BUSHING CONTROL LOWER Substituted by 5433065
5432092
5438902
$8,39 Unit Price incl. VAT
42
ARM RH UP.CONTROL BLK
1040587067
$188,99 Unit Price incl. VAT
42
ARM LH UP.CONTROL BLK
1040586067
Not Available
43
FITTING LUBE 45 DEG.(10)
7080586
Not Available
44
CARRIER BRG WHEEL (MACH) Substituted by 5131738
5131186
5134206
$195,29 Unit Price incl. VAT
45
Bearing Ball
3585502
3514635
$73,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
