Engine displacement
500
2
Year
1997
3
Trim
XPLORER 500 - W97CD50A
4
Parts Catalog
AIR BOX
5

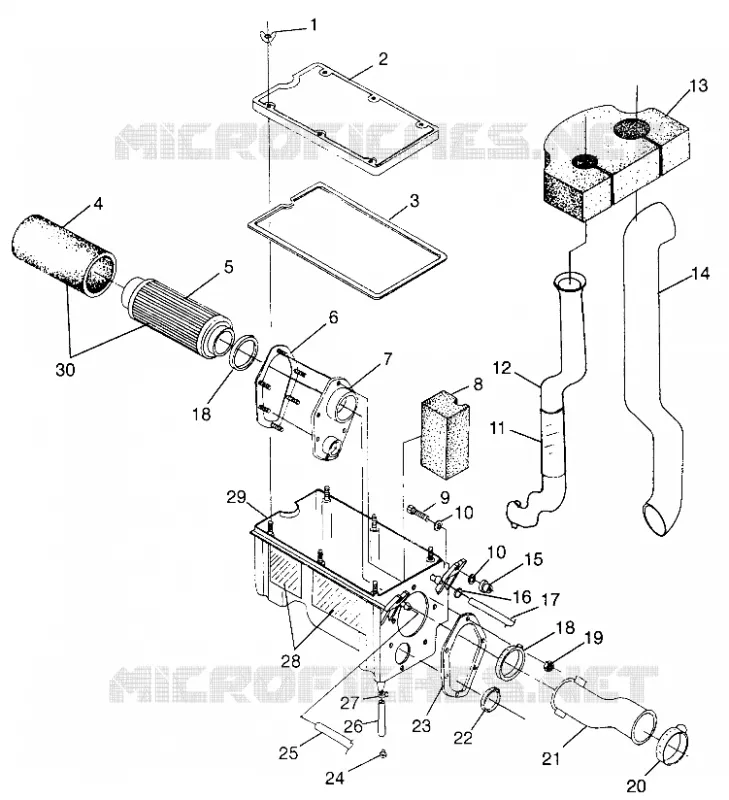

Parts Diagram
Parts Catalog
FUEL TANK
by
CV JOINT
AIR BOX
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
15
18
18
19
20
21
22
23
24
25
26
27
28
29
30
1
NUT WING(10)
7542127
$2,09 Unit Price incl. VAT
2
COVER AIRBOX
5432142
Not Available
3
SEAL COVER AIR INTAKE
5410996
$20,99 Unit Price incl. VAT
4
FOAM FILTER
5811137
$17,94 Unit Price incl. VAT
5
FILTER AIR INTAKE
7080595
7083107
$51,23 Unit Price incl. VAT
6
PLATE RETAINER
1040463
Not Available
7
BOOT-SILENCER
5411014
Not Available
8
FILTER FOAM EH50
5811532
Not Available
9
SCREW
7512279
$1,56 Unit Price incl. VAT
10
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
11
FOIL-TAPE AIR BOX
5811373
$3,98 Unit Price incl. VAT
12
DUCT INLET SILENCER
5432144
Not Available
13
SEAL-FOAM
5811309
Not Available
14
DUCT-AIR INLET CLUTCH
5432086
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
19
NUT LOCK(10) Substituted by 7541925
7541929
7541925
$1,56 Unit Price incl. VAT
20
Clamp Narrow Band
7080656
7080511
$9,44 Unit Price incl. VAT
21
DUCT-CARB INLET
5432143
Not Available
22
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
23
PLATE AIRBOX RETAINER ZINC
5241339
Not Available
24
Plug Trap
5432377
Not Available
25
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
26
FUEL LINE
8450059150
$115,49 Unit Price incl. VAT
27
CLAMP HOSE (10)
7080650
$7,34 Unit Price incl. VAT
28
FOIL-TAPE AIR BOX
5811138
Not Available
29
BOX AIR INTAKE
5432667
$262,49 Unit Price incl. VAT
30
FILTER ASM AIR (Incl. 28 26)
1253144
$56,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
