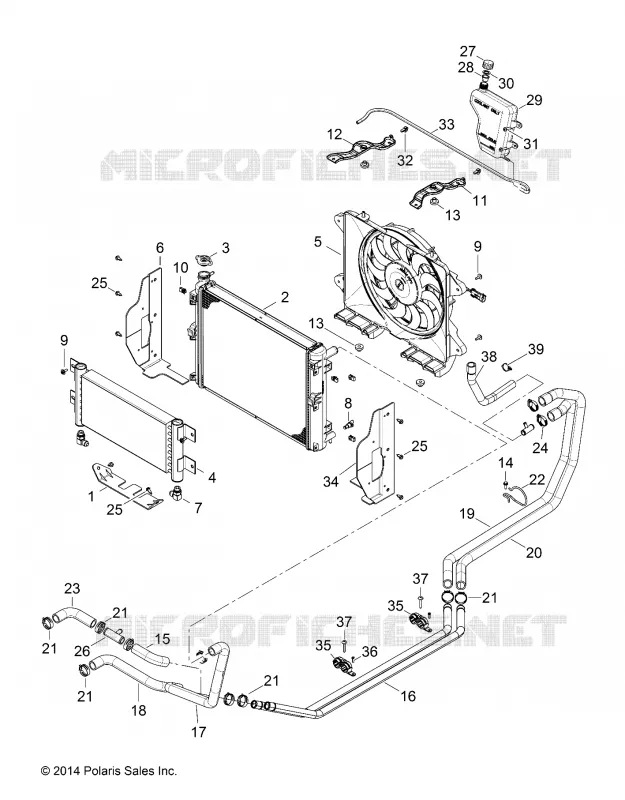

COOLING SYSTEM FOR BRUTUS HD HDPTO - D151DPD1AJ/2D/1L/1M/2M FROM 2015

COOLING SYSTEM

1

SHROUD RADIATOR CENTER BLACK

5439647070

Not Available

2

RADIATOR CORE

1240690

$1 454,24 Unit Price incl. VAT

3

CAP

1240692

$73,49 Unit Price incl. VAT

4

COOLER OIL

1240723

$687,74 Unit Price incl. VAT

5

ASM. FAN SHROUD

2412474

$624,74 Unit Price incl. VAT

6

SHROUD RADIATOR FRONT RH BLACK

5439646070

$68,24 Unit Price incl. VAT

7

FITTING

3120080

$41,99 Unit Price incl. VAT

8

VALVE RADIATOR CORE DRAIN

7052557

$52,49 Unit Price incl. VAT

9

BOLT-M6X20MM

7519584

$17,84 Unit Price incl. VAT

10

CLIP-#U# M6.0X1.0

7547366

$9,44 Unit Price incl. VAT

11

MOUNT RADIATOR LH BLAC

5451314070

$89,24 Unit Price incl. VAT

12

MOUNT RADIATOR RH BLACK

5451315070

$89,24 Unit Price incl. VAT

13

GROMMET-FLANGED .36X.56X1.06

7052028

$11,54 Unit Price incl. VAT

14

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

15

HOSE LOWER TUBE [2P]

5414414

$68,24 Unit Price incl. VAT

16

TUBE COOLANT 1#

5137818

$68,24 Unit Price incl. VAT

17

HOSE UPPER RADIATOR

5414293

$83,99 Unit Price incl. VAT

18

HOSE LOWER RADIATOR [1P]

5414294

$31,49 Unit Price incl. VAT

19

HOSE ENGINE INNER

5415076

$68,24 Unit Price incl. VAT

20

HOSE ENGINE OUT

5415454

$68,24 Unit Price incl. VAT

21

SPRINGBAND-CLAMP 35/12 BLK

7080844

$19,94 Unit Price incl. VAT

22

HOSE RETAINER

7043806

Not Available

23

HOSE LOWER RADIATOR [2P]

5414415

$68,24 Unit Price incl. VAT

24

CLAMP-HOSE(WORM DR)25-40MM

7081192

$14,69 Unit Price incl. VAT

25

RIVET-TUFLOK .315-.325X.787 ?

7661855

$2,09 Unit Price incl. VAT

26

CONNECTOR-TEE 1X1X0.5

7052530

$10,49 Unit Price incl. VAT

27

CAP-OVER FLOW BOTTLE DRILLED

5430743

$10,49 Unit Price incl. VAT

28

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$10,49 Unit Price incl. VAT

29

TANK-SURGE

5439202

$178,49 Unit Price incl. VAT

30

GASKET-OVERFLOW CAP

5810279

$4,19 Unit Price incl. VAT

31

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$9,44 Unit Price incl. VAT

32

CLIP-SILENCER BOX-C 98 INDY

7670102

$4,19 Unit Price incl. VAT

33

FUEL LINE-95 CENTIMETERS

845000395

$136,49 Unit Price incl. VAT

34

SHROUD RADIATOR FRONT LH BLACK

5439294070

Not Available

35

BRACKET-COOLANT TUBE

5451221

$16,79 Unit Price incl. VAT

36

SCREW-#10X3/4-HI/LO-PN-T25 TRX-M

7512026

$2,09 Unit Price incl. VAT

37

SCR-TXTH-M6X1.0X50 8.8 ZPB

7519001

$7,34 Unit Price incl. VAT

38

HOSE ENGINE BYPASS

5415078

$68,24 Unit Price incl. VAT

39

CLIP-ROUTING

7081496

$9,44 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
