FUEL TANK FOR BRUTUS HD HDPTO - D151DPD1AJ/2D/1L/1M/2M FROM 2015

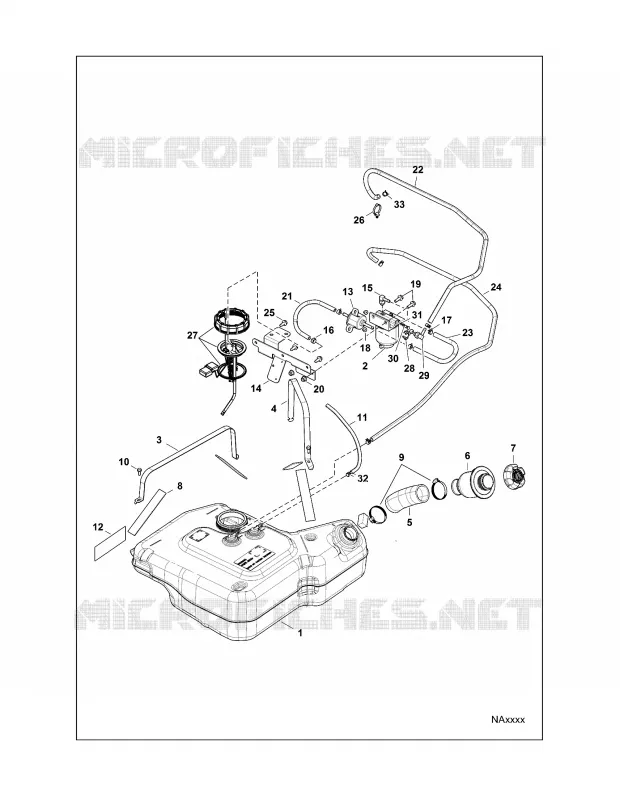

FUEL TANK

1

ASM. FUEL TANK

2521181

$1 685,24 Unit Price incl. VAT

2

FILTER FUEL WATER SEPERATOR DIESEL

2521087

$73,49 Unit Price incl. VAT

2

ASM. FILTER FUEL

2521460

$178,49 Unit Price incl. VAT

3

BRACKET TANK STRAP INSIDE

5258203

$31,49 Unit Price incl. VAT

4

BRACKET TANK STRAP OUTSIDE

5258204

$31,49 Unit Price incl. VAT

5

HOSE FUEL FILL

5414548

$125,99 Unit Price incl. VAT

6

ASM. INLET FUEL

2521311

$89,24 Unit Price incl. VAT

7

CAP TANK DIESEL [TO 2/8/2018]

5438877

$62,99 Unit Price incl. VAT

8

PAD-BATTERY NOT SHOWN

5810290

$13,64 Unit Price incl. VAT

9

CLAMP CONSTANT TENSION

7081413

$20,99 Unit Price incl. VAT

10

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

11

LINE VENT

845012650

$23,09 Unit Price incl. VAT

12

FOIL FENDER JOINT RH

5813526

$8,39 Unit Price incl. VAT

13

ASM. FUEL PUMP

2521461

$314,99 Unit Price incl. VAT

14

BRACKET FUEL SYSTEM MOUNT

5256189

$89,24 Unit Price incl. VAT

15

FITTING .50

7052601

$41,99 Unit Price incl. VAT

16

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

17

CLAMP-HOSE 17/32 GREEN

7081432

$7,34 Unit Price incl. VAT

18

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

19

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

$3,14 Unit Price incl. VAT

20

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

21

HOSE FUEL

8450117250

$99,74 Unit Price incl. VAT

22

Hose Fuel

8450123153

$157,49 Unit Price incl. VAT

24

HOSE FUEL FLARE

5415498

Not Available

25

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$4,19 Unit Price incl. VAT

26

CLIP-ROUTING

7081496

$9,44 Unit Price incl. VAT

27

SOLENOID-FUEL

4014784

$330,74 Unit Price incl. VAT

28

FITTING

7052602

$41,99 Unit Price incl. VAT

29

BOLT BANJO

7520008

$17,84 Unit Price incl. VAT

30

WASHER COPPER

7556839

$7,34 Unit Price incl. VAT

31

FILTER-VENT LINE

5813554

$8,39 Unit Price incl. VAT

32

CLAMP

7080236

$3,14 Unit Price incl. VAT

33

CLIP ROUTING .472 B.D. HINGED

7670116

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
