1
Engine displacement
570
2
Year
2012
3
Trim
RZR 570 EFI - R12VH57AD
4
Parts Catalog

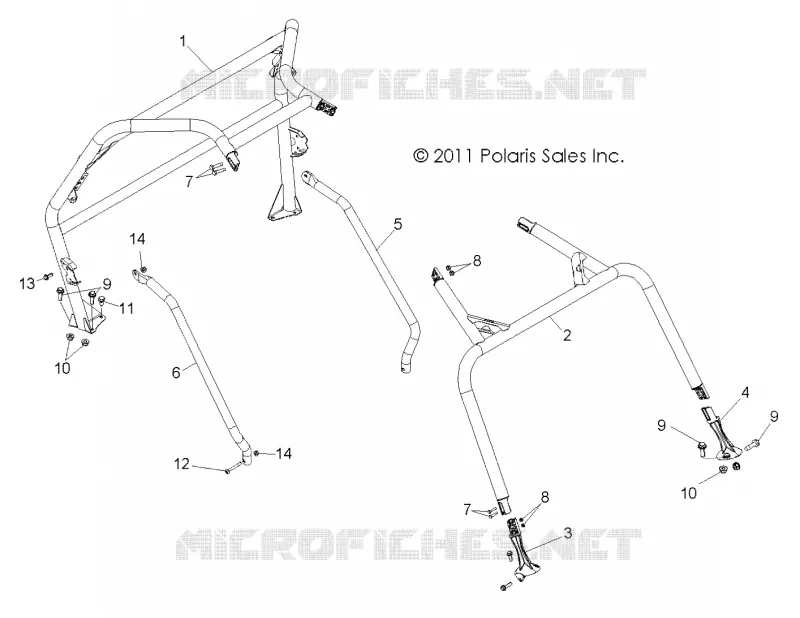

CHASSIS, CAB FRAME AND SIDE BARS
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
CHASSIS, MAIN FRAME AND SKID PLATE
CHASSIS, CAB FRAME AND SIDE BARS
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
7
8
8
9
9
9
10
10
11
12
13
10
10
1
2
3
4
5
6
7
8
9
10
10
11
12
13
10
1
Frame Cab Back Matte Black
1018251458
1019563-458
$1 553,99 Unit Price incl. VAT
2
Frame Cab Front Matte Black
1017476458
1019958-458
$493,49 Unit Price incl. VAT
3
Base Cab Frame Front Base RH Matte Black
5632414458
$230,99 Unit Price incl. VAT
4
Base Cab Frame Front Base LH Matte Black
5632415458
$230,99 Unit Price incl. VAT
5
Tube Side Bar LH Matte Black
5336741458
Not Available
6
Tube Side Bar RH Matte Black
5336742458
$152,24 Unit Price incl. VAT
7
SCR-3/8 16X1 1/4 HXSOC CS ZY3
7517935
$4,19 Unit Price incl. VAT
8
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
9
SCR-HXFL-M8X1.25X20 8.8 ZY3
7518702
$7,34 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
12
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$3,14 Unit Price incl. VAT
13
Screw
7517826
$11,01 Unit Price incl. VAT
14
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
