1
Engine displacement
570
2
Year
2012
3
Trim
RZR 570 EFI - R12VH57AD
4
Parts Catalog
ENGINE, STATOR COVER AND FLYWHEEL
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT
by
THERMOSTAT and COVER

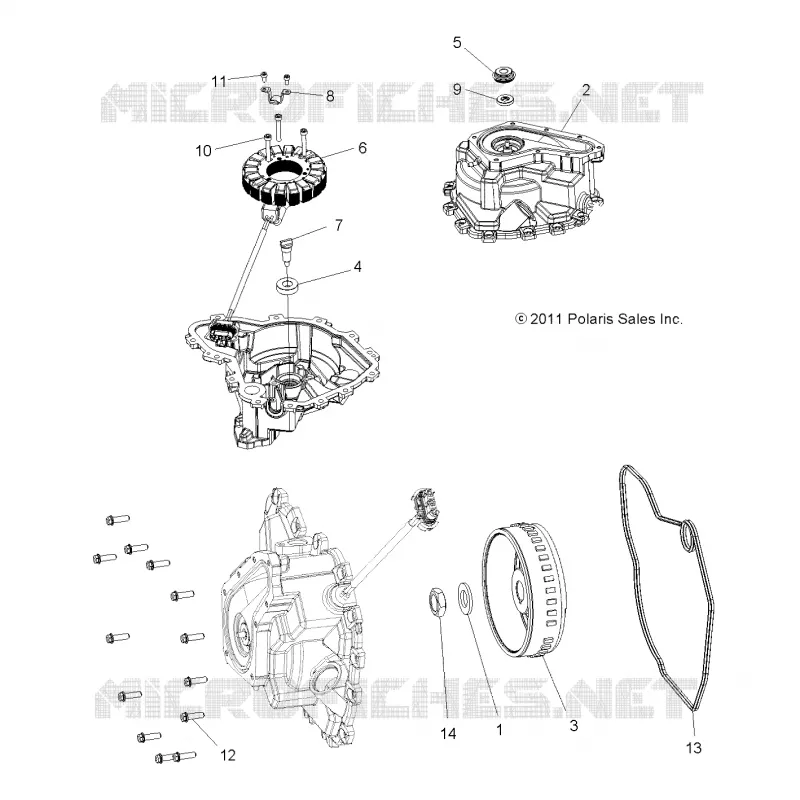

ENGINE, STATOR COVER AND FLYWHEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
WASHER
7556568
$7,34 Unit Price incl. VAT
2
KIT IGNITION COVER [INCL. COVER FITTING 4 5 7 9]
2204736
$323,39 Unit Price incl. VAT
3
Flywheel w/Encoder [Built 3/16/12 and After]
4013329
$431,54 Unit Price incl. VAT
4
BEARING SHAFT WATERPUMP [TO 01/15/2023]
3514696
3515828
$17,63 Unit Price incl. VAT
5
SEAL-WATERPUMP SHAFT WATER
3610173
3610435
$30,44 Unit Price incl. VAT
6
Stator [Built 3/16/12 and After]
4013013
$766,49 Unit Price incl. VAT
7
Shaft Pump Drive
5137406
Not Available
8
GUIDE-STATOR LEAD
5254832
$15,74 Unit Price incl. VAT
9
SEAL
5411197
$41,99 Unit Price incl. VAT
10
SCR-M6X1.0X40 HX/SOC/CP-Y/D
7510005
$9,44 Unit Price incl. VAT
11
SCREW-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT
12
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
13
GASKET-STATOR COVER
5414329
$41,99 Unit Price incl. VAT
14
NUT-HEX M18X1.5 4 JAM RH
7547488
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
