1
Engine displacement
550
2
Year
2011
3
Trim
SPORTSMAN TOURING EPS 550 INTL - A11DX55FL
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE (BUILT 3/01/11 AND BEFORE)
5
Parts Diagram
Parts Catalog
TURN SIGNALS HORN
by
STABILIZER BAR

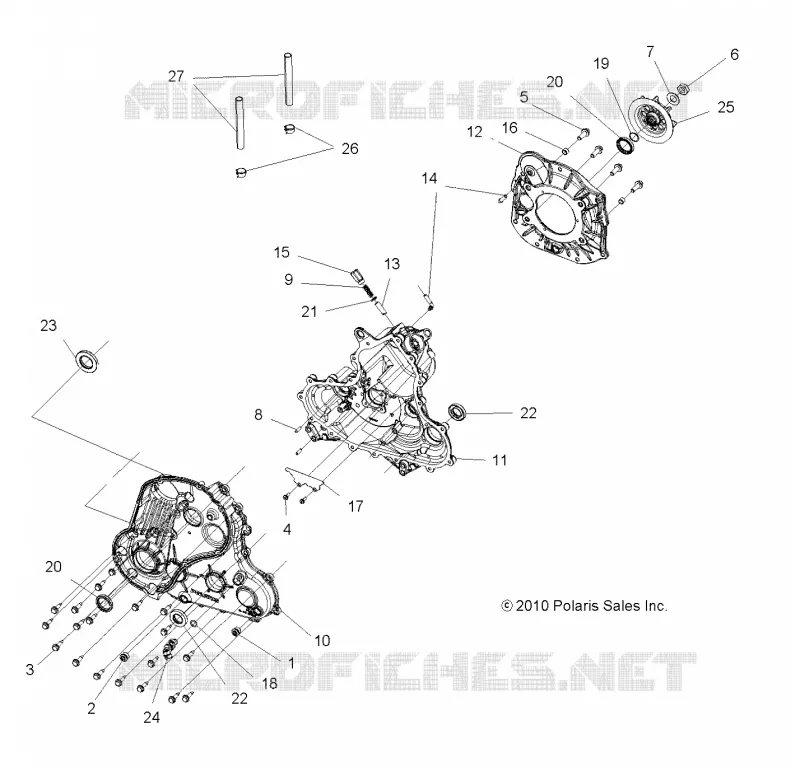

DRIVE TRAIN, MAIN GEARCASE (BUILT 3/01/11 AND BEFORE)
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
-
Asm. Transmission [Built 3/01/10 and Before]
1332845
Not Available
1
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
SCREW 6-LOBE PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
5
SCREW HEX FLANGE HEAD M10 X 1.5 X 30
3234634
$25,19 Unit Price incl. VAT
6
Nut
3234788
$41,99 Unit Price incl. VAT
7
Washer
3234638
$41,99 Unit Price incl. VAT
8
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
9
SPRING COMPRESSION 0.45 OD X 1.58
3234790
$47,24 Unit Price incl. VAT
10
GEARCASE GTO COVER MACH
3234689
$692,99 Unit Price incl. VAT
11
Gearcase Main
3234690
$411,59 Unit Price incl. VAT
12
Bellhousing [Does NOT Incl. 1 Built 2/13/10 and After]
3234691
Not Available
13
Bullet Detent
3234695
$68,24 Unit Price incl. VAT
14
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
15
Plug Detent
3234715
$68,24 Unit Price incl. VAT
16
PIPE KNOCK
3234765
$26,24 Unit Price incl. VAT
17
Deflector Oil
3234725
$26,24 Unit Price incl. VAT
18
O-RING
3234302
$13,64 Unit Price incl. VAT
19
O-Ring
3234728
$17,84 Unit Price incl. VAT
20
Seal Triple Lip
3234739
$57,74 Unit Price incl. VAT
21
O-RING 0.53 I.D X 0.082 WIDE
3234729
$25,19 Unit Price incl. VAT
22
SEAL TRIPLE LIP 0.984 X 1.85 X 0.315 VITON
3234892
$68,24 Unit Price incl. VAT
23
SEAL 35 X 62 X 8
3234769
$78,74 Unit Price incl. VAT
24
SENSOR SPEED
4012167
4082135
$204,74 Unit Price incl. VAT
25
Coupler
5136575
$283,49 Unit Price incl. VAT
26
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
27
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
