1
Engine displacement
550
2
Year
2011
3
Trim
SPORTSMAN TOURING EPS 550 INTL - A11DX55FL
4
Parts Catalog
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BRAKE LINES
by
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

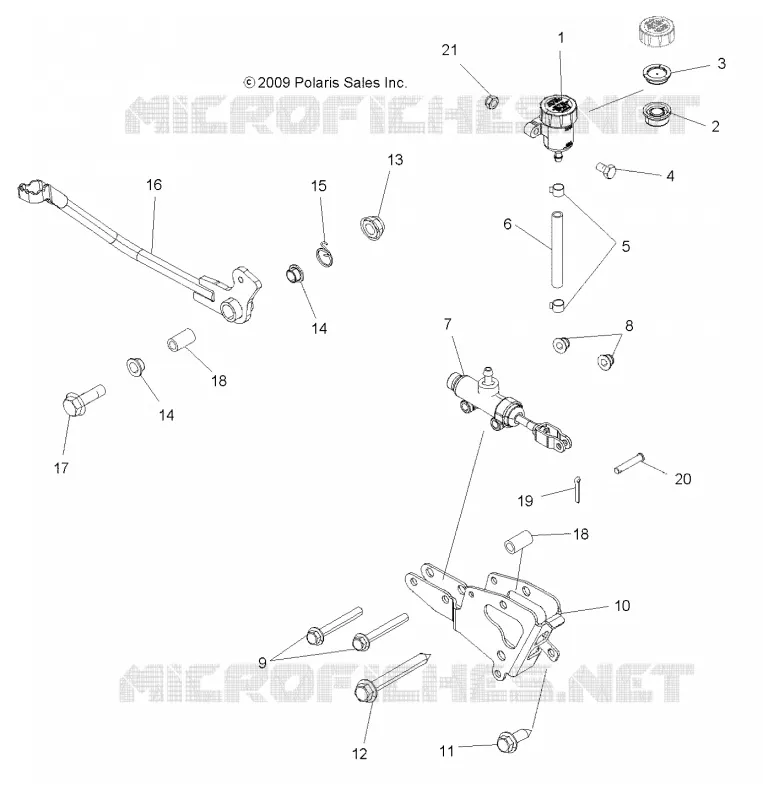

BRAKES, BRAKE PEDAL AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
19
20
21
1
ASM-RESERVOIR BRAKE TALL 2-EAR [INCL. 1-3]
1911224
$68,24 Unit Price incl. VAT
2
DIAPHRAGM RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
3
RING RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
4
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
5
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
6
HOSE-RESERVOIR BRAKE 826MM
1911267826
$29,39 Unit Price incl. VAT
7
ASM. MASTER CYLINDER BRAKE FOOT
1911551
$204,74 Unit Price incl. VAT
8
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
9
SCR-SH-M8X1.25X30 8.8 ZPC
7516732
$3,14 Unit Price incl. VAT
10
Bracket Mount Brake Int#l [TO 7/7/2020]
5253114
Not Available
11
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
12
SCR-THFHL-M8X1.25X50 CHS ZOD
7518677
$7,34 Unit Price incl. VAT
13
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
14
BUSHING PIVOT PEDAL
5433189
$7,34 Unit Price incl. VAT
15
SPRING-TORSION BRAKE
7041750
$16,79 Unit Price incl. VAT
16
Lever Brake Black
1911722067
Not Available
17
BOLT-M10X1.25X50 HXFLG-OLIVE D
7518559
$10,49 Unit Price incl. VAT
18
SPACER-12.7X10.2X30.5MM
5135720
$12,59 Unit Price incl. VAT
19
PIN-COTTER 5/64X3/4-Y
7661900
$6,29 Unit Price incl. VAT
20
PIN-CLEVIS 1/4X5/8 - Z
7661830
$7,34 Unit Price incl. VAT
21
NUT-6MM X 1 NYLOK-Z
7546703
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
