GEARCASE
5

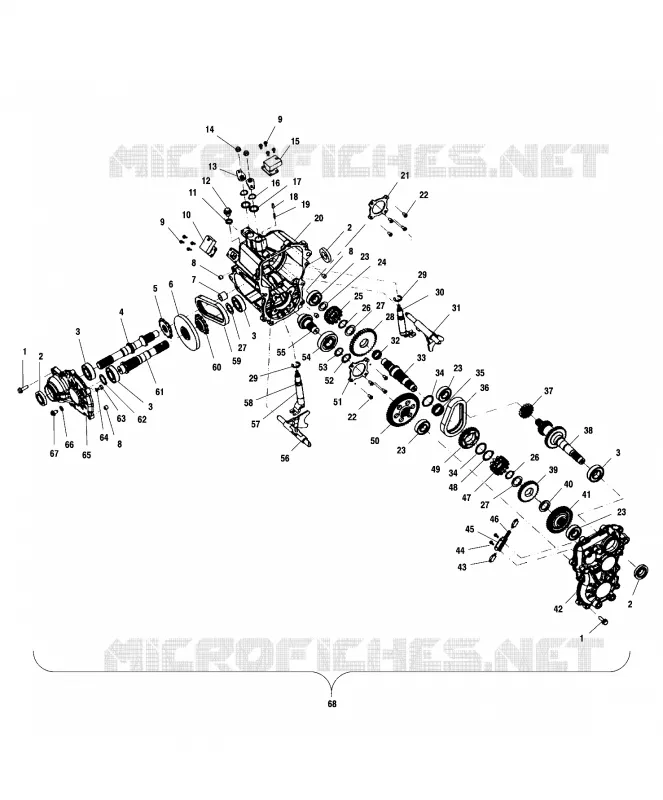

Parts Diagram
Parts Catalog
OIL PUMP AND OIL FILTER
by
REAR CAB SEAT
GEARCASE
1
SCREW
3233252
$9,44 Unit Price incl. VAT
2
SEAL TRIPLE LIP
3233788
$57,74 Unit Price incl. VAT
3
BEARING
3233019
$54,59 Unit Price incl. VAT
4
SHAFT OUTPUT MAIN FRONT
3233625
$262,49 Unit Price incl. VAT
5
SPROCKET 22T
3233844
$220,49 Unit Price incl. VAT
5
SPROCKET (12T)
3233093
Not Available
6
Asm. Ground Spiral Bevel [Incl. 48]
3234912
Not Available
7
BEARING
3233552
$41,99 Unit Price incl. VAT
8
PIPE KNOCK
3233529
$16,79 Unit Price incl. VAT
9
SCREW TAPPING TORX PH 11902 X.50
3233749
$10,49 Unit Price incl. VAT
10
Switch 3 Position
3234019
Not Available
11
Washer
3233872
$17,84 Unit Price incl. VAT
12
PLUG OIL FILL
3233711
Not Available
13
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
14
NUT LOCK HEX FLANGE NYLON 5/16-24
3233961
$5,24 Unit Price incl. VAT
15
Switch 2 Position
3234001
Not Available
16
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
17
WASHER
3233040
$17,84 Unit Price incl. VAT
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
VENT
3233037
Not Available
20
Gearcase Main
3233765
$1 268,39 Unit Price incl. VAT
20
Engagement Dog Low
3233732
$330,74 Unit Price incl. VAT
21
Plate Parklock
3233757
Not Available
22
Screw
3233608
$9,44 Unit Price incl. VAT
23
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
24
Washer
3233628
Not Available
25
Engagement Dog Low/Park
3233758
$185,84 Unit Price incl. VAT
25
Engagement Dog Low (AA)(AB)
3233629
$330,74 Unit Price incl. VAT
26
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
27
WASHER THRUST
3233619
$36,74 Unit Price incl. VAT
28
Gear 36T
3233760
Not Available
28
Gear 35T
3233631
$214,19 Unit Price incl. VAT
29
Ring Retaining
3233618
Not Available
30
Shaft Shift H/R
3233627
Not Available
31
SHIFT FORK
3233602
Not Available
32
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
33
Shaft Reverse
3233761
Not Available
33
SHAFT REVERSE
3233598
Not Available
34
WASHER
3233012
Not Available
35
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
36
CHAIN SILENT 34P
3233036
Not Available
37
Gear 16T
3233770
$151,19 Unit Price incl. VAT
37
Gear 14/19T
3233755
Not Available
38
Shaft Input 31T
3233756
Not Available
39
GEAR 30T
3233600
$388,49 Unit Price incl. VAT
40
SPACER
3233613
$5,66 Unit Price incl. VAT
41
Gear Helical 36T
3233708
Not Available
41
GEAR-HELICAL.34T (FA)
3233762
Not Available
42
Cover LH
3233763
Not Available
42
GEARCASE LH
3233610
Not Available
43
PIN INTERLOCK
3233308
Not Available
44
Screw
3233747
Not Available
45
BRACKET INTERLOCK
3233309
$33,06 Unit Price incl. VAT
46
SPRING
3233032
$26,24 Unit Price incl. VAT
47
Engagement Dog H/R
3234020
Not Available
48
RING RETAINING
3233029
$10,49 Unit Price incl. VAT
49
Sprocket 24T
3233599
Not Available
50
Gear 50T
3233764
Not Available
50
Gear Helical 48T
3233709
Not Available
51
Cover Bearing
3233609
Not Available
52
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
53
SPACER
3233357
$36,74 Unit Price incl. VAT
54
Bearing Ball
3233607
$60,89 Unit Price incl. VAT
55
Asm. Ground Spiral Bevel [Incl. 48]
3234912
Not Available
56
Fork Shift Low/Park
3233759
$330,74 Unit Price incl. VAT
56
SHIFT FORK LOW
3233605
Not Available
57
Shaft Shift
3233624
Not Available
58
O-RING
3233548
$52,49 Unit Price incl. VAT
59
Chain
3233784
$173,24 Unit Price incl. VAT
59
ROLLER CHAIN 24P
3233626
Not Available
60
SPROCKET 12T
3233620
Not Available
60
Sprocket 22T/18T
3233873
$188,99 Unit Price incl. VAT
61
Shaft Output Rear
3233622
Not Available
62
SHIM
3233611
$52,49 Unit Price incl. VAT
63
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
64
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
65
Cover Output
3233781
Not Available
66
Washer
3234035
Not Available
67
Plug Drain
3233777
$52,49 Unit Price incl. VAT
68
Asm. Gearcase Main (AA)(AB)
1341365
Not Available
68
Asm. Gearcase (FB)
1341373
Not Available
