1
Engine displacement
325
2
Year
2002
3
Trim
MAGNUM 325 4X4 - A02CD32AB
4
Parts Catalog

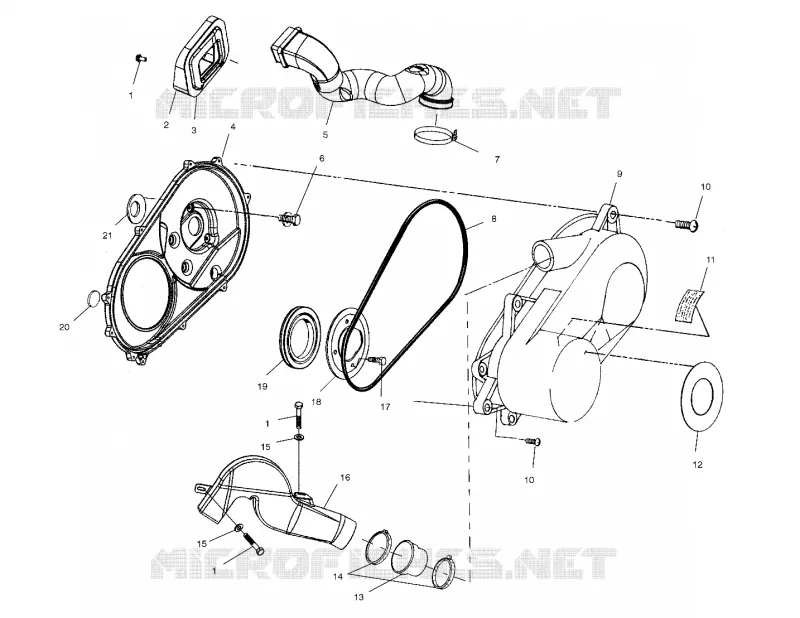

CLUTCH COVER
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
GEAR SELECTOR
CLUTCH COVER
1
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
2
FOAM CLUTCH AIR INLET ASM.
2632116
$83,99 Unit Price incl. VAT
3
DESC NOT_AVAILABLE
5433453
Not Available
4
INNER CLUTCH CVR SVC ASM. (If built after 1/03/00)
2201676
$198,96 Unit Price incl. VAT
5
DUCT INLET 325
5433363
Not Available
6
Asm. Screw and Washer [INCL. 15 &16]
7517599
$10,49 Unit Price incl. VAT
7
CLAMP NARROW BAND
7080909
$14,69 Unit Price incl. VAT
8
SEAL CLUTCHCOVER
5521301
5526452
$58,58 Unit Price incl. VAT
9
Cover Clutch Outer Black
5433451070
5438142-070
$346,49 Unit Price incl. VAT
10
SCR-#14X1-1/4 LG HI/LO/TAPER-M
7512094
$3,14 Unit Price incl. VAT
11
DECAL WARNING CLUTCH CVR (If built after 10/04/99)
7078689
Not Available
12
Decal #Automatic EBS#
7077666
Not Available
12
DECAL AUTO.TRANSMISSION
7074782
Not Available
13
Boot Duct Hi Flow
5411489
Not Available
14
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
15
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
16
Duct Air Outlet
5434213
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
BRACKET CLUTCH SEAL
5242046067
$68,24 Unit Price incl. VAT
19
SEAL COVER CASE
5410575
$78,74 Unit Price incl. VAT
20
STOPPER-INNER CLUTCH COVER
5411795
Not Available
21
Seal Clutch Cover
5411901
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
