1
Engine displacement
0
2
Year
1993
3
Trim
EURO STORM SKS - E932570
4
Parts Catalog

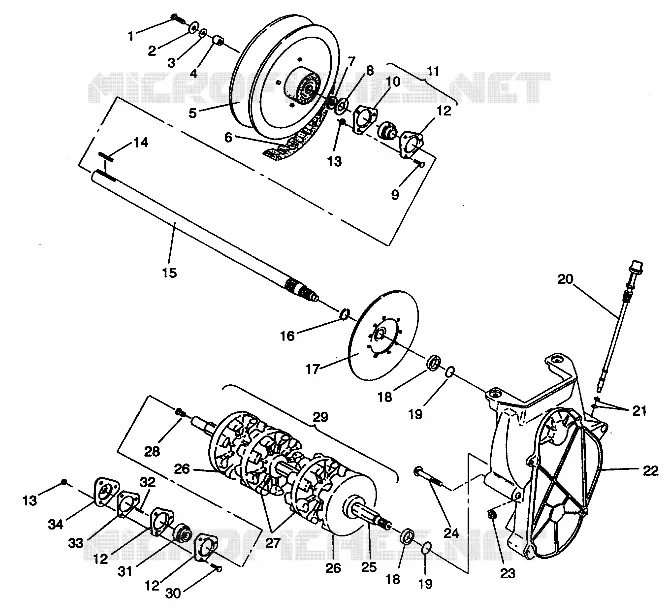

DRIVE TRAIN ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440020)
5
Parts Diagram
Parts Catalog
CHAINCASE ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440019)
by
ENGINE MOUNTING STORM E940782 AND STORM SKS E940582 (49274427440027)
DRIVE TRAIN ASSEMBLY STORM E940782 AND STORM SKS E940582 (49274427440020)
1
SCREW
7515369
$9,44 Unit Price incl. VAT
2
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
BELT DRIVE (5) Substituted by 3211065
3211057
3211065
$147,51 Unit Price incl. VAT
7
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
8
BUSHING
7556509
$3,14 Unit Price incl. VAT
9
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
10
FLANGETTE W/GREASE HOLE (Greasable)
5222752
$11,96 Unit Price incl. VAT
11
KIT HI-PERF BEARING (Incl. 9 11)
2200422
Not Available
12
FLANGETTE
5222751
$26,24 Unit Price incl. VAT
13
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
14
KEY(10)
7721116
$26,24 Unit Price incl. VAT
15
JACKSHAFT ASM (800) (Incl. 16)
1332162093
Not Available
16
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
17
DISC ASM BRAKE
1910086
Not Available
18
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
19
O-RING
5410613
$3,66 Unit Price incl. VAT
20
DIPSTICK Substituted by 1332143
5431419
1332143
$89,24 Unit Price incl. VAT
21
O-RING
5410675
$3,14 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
24
BOLT(10)
7515428
$9,44 Unit Price incl. VAT
25
DRIVE SHAFT Substituted by 6230083
6230067
Not Available
26
SPROCKET 9T
5430571
Not Available
27
SPROCKET HALF 9T
5430993
Not Available
28
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
29
DRIVESHAFT ASM. Substituted by 1590245
1590229
Not Available
30
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
31
BEARING
3514517
Not Available
32
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
33
GASKET
5830012
$4,19 Unit Price incl. VAT
34
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
