Parts Catalog

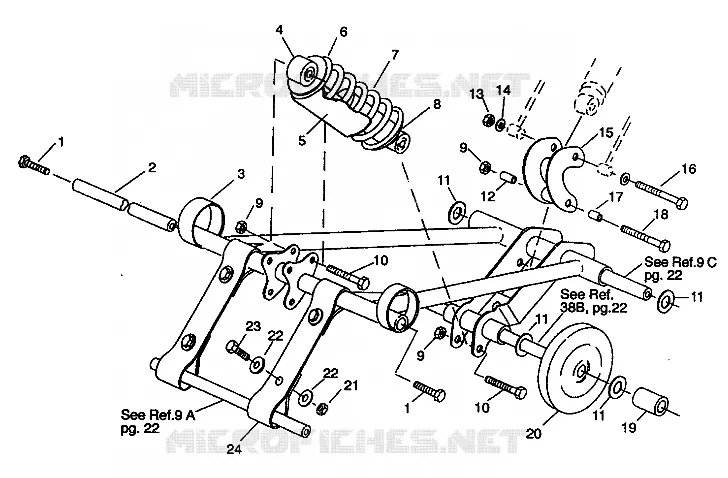

FRONT TORQUE ARM STORM E940782 AND STORM SKS E940582 (49274427440023)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY STORM E942770 AND STORM SKS E942570 (49274427440021)
by
REAR TORQUE ARM STORM E940782 AND STORM SKS E940582 (49274427440024)
FRONT TORQUE ARM STORM E940782 AND STORM SKS E940582 (49274427440023)
1
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
2
SHAFT MOUNTING
5010149
Not Available
3
ARM FR.TORQUE BLK.
1540794067
Not Available
4
SHOCK CTR.SUSP.
7041281
Not Available
5
SHIELD SPRING
5430671
$47,24 Unit Price incl. VAT
6
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
7
SPRING COMP. BLK.
7041289067
$47,66 Unit Price incl. VAT
8
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
9
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
10
SCREW
7515415
$2,09 Unit Price incl. VAT
11
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
12
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
13
NUT FLEX LOC (10)
7542402
$11,54 Unit Price incl. VAT
14
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
15
SHOCK ARM WELD BLK.
1540791067
Not Available
16
BOLT(10)
7515525
Not Available
17
SPACER
5333028
$2,61 Unit Price incl. VAT
18
BOLT
7515438
$9,44 Unit Price incl. VAT
19
SPACER OUTER
5332784
Not Available
20
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
21
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
22
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
23
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
24
STRAP LIMITER
5410397
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
