1
Engine displacement
500
2
Year
2009
3
Trim
SPORTSMAN 500 EFI - A09MN50AN/AX
4
Parts Catalog

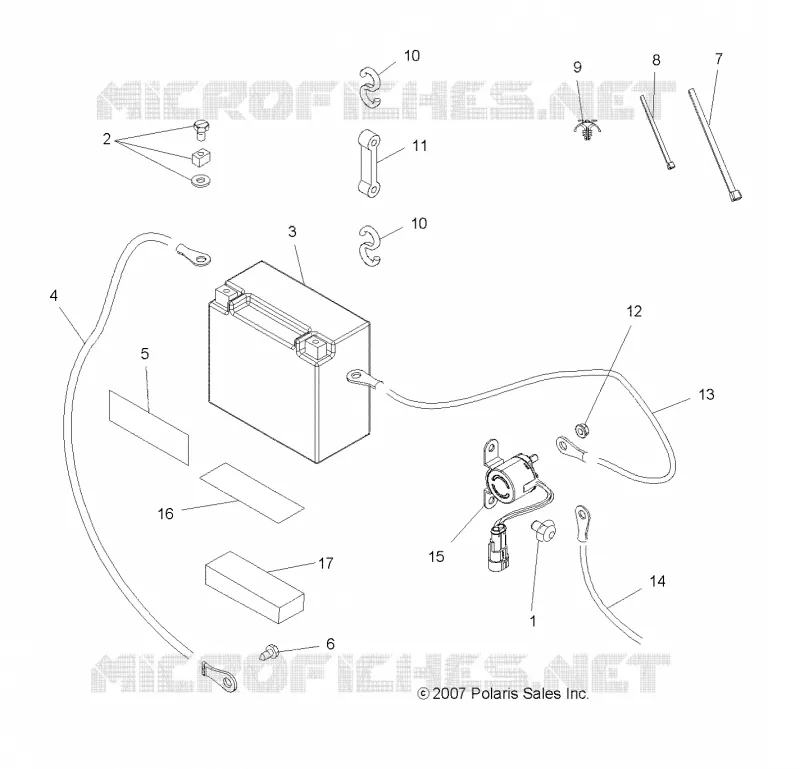

BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SHIFT FORKS
by
BULBS
BATTERY
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
1
2
2
3
3
3
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
1
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
2
KIT BATTERY BOLT [INCL. BOLTS WASHERS NUTS]
2201357
$20,99 Unit Price incl. VAT
3
Battery
4011496
4081963
$230,25 Unit Price incl. VAT
4
CABLE BLK STARTER
4010074
$83,99 Unit Price incl. VAT
5
PAD-BATTERY NOT SHOWN
5810290
5810290-CO
$13,64 Unit Price incl. VAT
6
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
7
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
8
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
9
MOUNT CABLE TIE
7080965
$13,64 Unit Price incl. VAT
10
Hook Strap Battery
7010032
$3,14 Unit Price incl. VAT
11
STRAP BATTERY HOLD DOWN
5412499
5418182
$9,44 Unit Price incl. VAT
12
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
13
Cable Battery/Solenoid
4010471
Not Available
14
CABLE-21# SOL/START RED
4010093
$89,24 Unit Price incl. VAT
15
SOENOID STARTER C1100 [INCL 2][A2]
4012001
4081641
$59,84 Unit Price incl. VAT
16
FOAM SEAL
5810947
$8,39 Unit Price incl. VAT
17
FOAM PANEL LH
5812138
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
