1
Engine displacement
0
2
Year
2001
3
Trim
diesel-a10ch46ca
4
Parts Catalog
CONTROLS
5

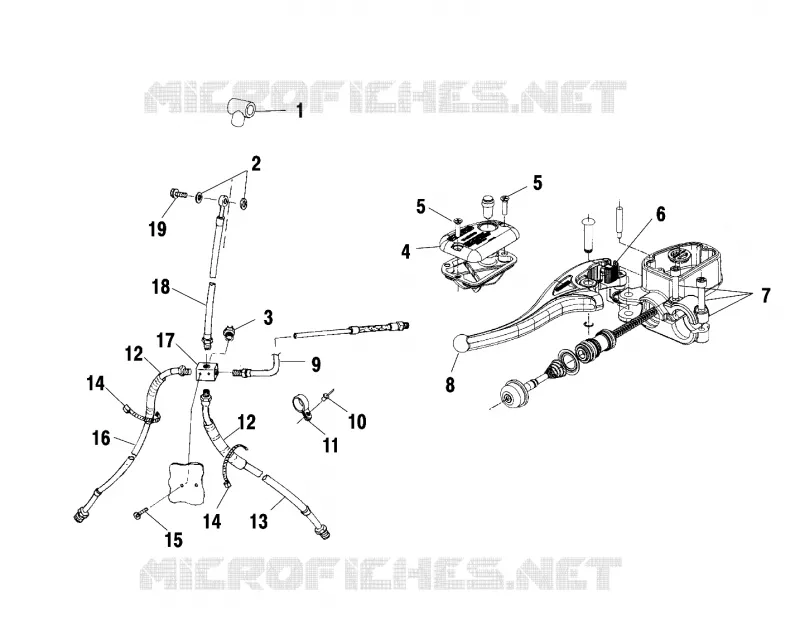

Parts Diagram
Parts Catalog
CONTROLS
by
STEERING POST
CONTROLS
-
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
18
19
-
Asm. Master Cylinder
2010196
2010238
$456,74 Unit Price incl. VAT
1
Boot Brake Line Rubber
5411297
$3,35 Unit Price incl. VAT
2
SEAL
5410988
$9,44 Unit Price incl. VAT
3
SWITCH-BRK 1/8#-27 NPTF SEALED [BRAKE LIGHTS]
4110164
2890637
$325,49 Unit Price incl. VAT
4
Kit Master Cylinder Cap [Incl. Cap Screws Sight Gasket]
2201834
2202725
$99,74 Unit Price incl. VAT
5
Screw
7517899
$2,09 Unit Price incl. VAT
6
Kit Master Cylinder Park Brake Lever [Incl. Lever Spring]
2201836
$83,99 Unit Price incl. VAT
7
Kit Master Cylinder Clamp [Incl. Clamp Screws]
2201833
$89,24 Unit Price incl. VAT
8
Kit Master Cylinder Lever [Incl. Pin Lever Clip]
2201835
$115,49 Unit Price incl. VAT
9
LINE-BRAKE JB TO REAR SS IRS
1910478
Not Available
10
RIVET-POP3/16(.251-.375)AL-B
7621462
$2,09 Unit Price incl. VAT
11
CLAMP-NYLON CABLE 1/4#
7080539
$9,44 Unit Price incl. VAT
12
Conduit
836003134
Not Available
13
Line w/Fittings Brake Front LH
1910474
$167,99 Unit Price incl. VAT
14
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
15
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
16
Line Brake Stainless Steel Front RH
1910475
$167,99 Unit Price incl. VAT
17
FITTING-CROSS ATV BRAKE
7052292
$73,49 Unit Price incl. VAT
18
Line Brake Stainless Steel Pod
1910470
$167,99 Unit Price incl. VAT
19
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
